LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

RANGE ROVER SPORT

DEPLOYABLE SIDE STEPS - NON-ELECTRIC VEHICLES

VPLKP0493 / VPLKP0533 / VPLKP0500 / VPLKP0499 / VPLKP0514 / VPLXP0515 / VPLLX0004 / VPLLX0005 / VPLLX0006 / VPLLX0007 / VPLLK0043 / VPLLK0044 / VPLLK0045 / VPLLK0046 / VPLLX0014 / VPLLX0015 / VPLLX0016 / VPLLX0017 / VPLKP0498 / VPLXP0513 / VPLKP0486

FITTING INSTRUCTION

WARNING
  • Accessories that are not installed correctly can be dangerous.
  • Before ordering and installing the accessory, you must read all the instructions. The correct accessory / parts must be ordered for your variant of the vehicle.
  • You must follow all instructions. If in doubt, contact your nearest approved retailer.
NOTE
  • The illustrations with tables below are a breakdown of the accessory kits required for this procedure. They include individual parts, quantities and required part numbers.

Jacking Points (Bill of Materials)

NOTE
  • 'VPLKP0533' is recommended for installing only while stocks last, but 'VPLKP0493' is the kit that will need the extra clips (A2) and (A3) ordered separately (see section 'Additional parts if required') for clip part numbers and quantity.
Accessory Kits Vehicle Variant Part Number
Jacking Points All VPLKP0493
Jacking Points - with extra clips All VPLKP0533

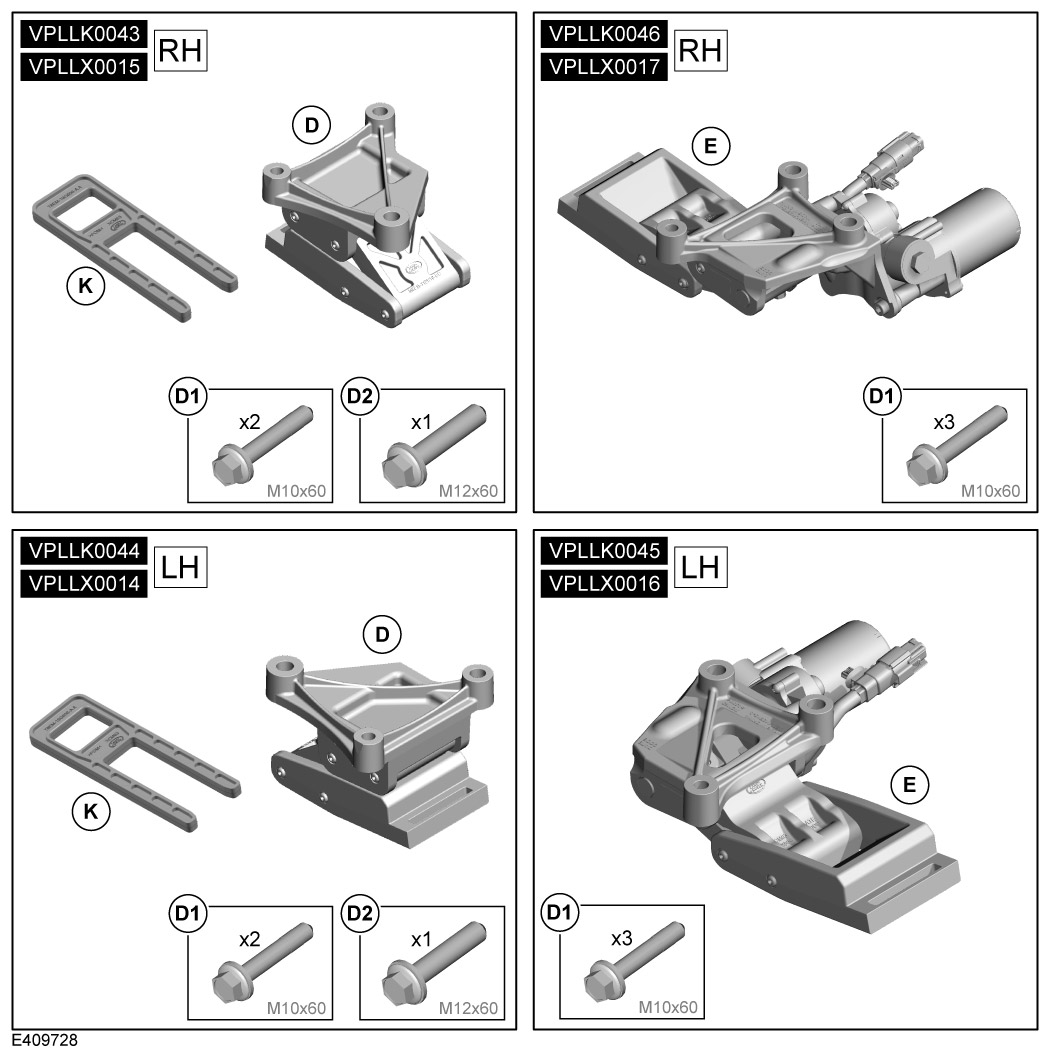

Deployable Side Step Motor Links and Idlers - Version 1 (Bill of Materials)

NOTE
  • There are 2 versions of the 'Deployable Side Step Motor Links and Idlers' (Version 1 and Version 2). Depending on stock level both versions 1 and 2 are fine to order and install to your vehicle.
  • There is more than one 'replacement service part number' for the same parts. Depending on stock level both part numbers are fine to order and install to your vehicle.
Accessory Kits Vehicle Variant Part Number
Deployable Side Step Motor Links and Idlers - Left Side Range Rover Sport S and SE VPLKP0500 or VPLLX0007
Deployable Side Step Motor Links and Idlers - Left Side Range Rover Sport Dynamic Vehicles, Autobiography and SV VPLXP0514 or VPLLX0005
Deployable Side Step Motor Links and Idlers - Right Side Range Rover Sport S and SE VPLKP0499 or VPLLX0006
Deployable Side Step Motor Links and Idlers - Right Side Range Rover Sport Dynamic Vehicles, Autobiography and SV VPLXP0515 or VPLLX0004

Deployable Side Step Motor Links and Idlers - Version 2 (Bill of Materials)

NOTE
  • There are 2 versions of the 'Deployable Side Step Motor Links and Idlers' (Version 1 and Version 2). Depending on stock level both versions 1 and 2 are fine to order and install to your vehicle.
Accessory Kits Vehicle Variant Part Number
Deployable Side Step - Rear Motor Link - Left Side Range Rover Sport S and SE VPLLK0045
Deployable Side Step - Rear Motor Link - Right Side Range Rover Sport S and SE VPLLK0046
Deployable Side Step - Front Idler - Left Side Range Rover Sport S and SE VPLLK0044
Deployable Side Step - Front Idler - Right Side Range Rover Sport S and SE VPLLK0043
Deployable Side Step - Rear Motor Link - Left Side Range Rover Sport Dynamic Vehicles, Autobiography and SV VPLLX0016
Deployable Side Step - Rear Motor Link - Right Side Range Rover Sport Dynamic Vehicles, Autobiography and SV VPLLX0017
Deployable Side Step - Front Idler - Left Side Range Rover Sport Dynamic Vehicles, Autobiography and SV VPLLX0014
Deployable Side Step - Front Idler - Right Side Range Rover Sport Dynamic Vehicles, Autobiography and SV VPLLX0015

Deployable Side Step Board (Bill of Materials)

NOTE
  • Only 1 side step board comes in the replacement kit. If you require 2 then order 2 kits.
  • There is more than one 'part number' for the same parts. Depending on stock level both part numbers are fine to order and install to your vehicle.
Accessory Kits Vehicle Variant Part Number
Deployable Side Step Board - Black All VPLKP0498 or VPLXP0513

Running Board Control Module (RBM) (Bill of Materials)

NOTE
  • 'China' market vehicles are pre-installed with RBM and bracket from the factory.
Accessory Kits Vehicle Variant Part Number
RBM All VPLKP0486

Additional parts if required (Bill of Materials)

NOTE
  • If damaged or lost the following parts can be ordered separately.
  • Clips (A2) and (A3) must be ordered separately if you have ordered 'Jacking Points kits' 'VPLKP0493'. Number of clips required are shown in the table below.
Bill Of Materials Replacement Service Part Number Quantity
(A2) Trim Clips LR032984 4
(A3) Trim Lantern Clips LR112137 28
(J) Bracket LR152386 1
(I1) Fixing - M6 FN106042 2
(J1) Fixing - M6x16 LR029806 2

Warnings / Cautions / Notes / Tooling and Equipment

WARNING
  • Make sure to wear suitable personal protective equipment when cutting / drilling parts.
CAUTION
  • Installing side steps will affect the off-road capability of the vehicle.
  • When discarding parts, do so in an environmentally responsible manner and all local regulations must be followed.
NOTE
  • If you are installing the front 'Mud Flaps' with the 'Side Steps' then they must be installed after the 'Side Steps' are installed.
  • This procedure contains illustrations for left side components, right side components are similar.
  • Paid subscription to TOPIX required to view workshop manual links.
Tooling and Equipment
Torque Wrench
Socket Set
Torx Set
Allen key Socket Set
Trim Removal Tool
Oscillator cutting tool
Fitting Instruction
1

Inspect vehicle for pre-installed RBM.

  1. China market vehicles are pre-installed with the RBM from the factory. If you already have the module installed proceed from 'Step 15'.
  2. If your vehicle is not equipped with a pre-installed RBM proceed to the next step.
2

Removing loadspace components.

  1. Open the tailgate.
  2. Remove the loadspace cover.
  3. Remove the loadspace floor panel.
3
WARNING
  • Heavy component. Assistance from a second person is required.

Remove the spare wheel or tool kit tray.

  1. Release the spare wheel from its holder by unscrewing the black plastic fixing in the center of the wheel. Then remove the spare wheel.
  2. If there is no spare wheel then remove the tool kit tray.
4

Remove the luggage compartment treadplate.

  1. Remove 2 fixings.
  2. Pull away, releasing the rear treadplate from its 4 clips.
5

Remove the left side D-Loops.

  1. Remove D-Loop fixings.
  2. Remove D-Loops.
6

Release the loadspace carpet.

  • Use a trim tool, remove 3 clips holding the loadspace carpet in place.
7
NOTE
  • Do not fully remove the loadspace side trim panel.

Release the loadspace carpet.

  1. Pull aside the left side trim panel.
  2. Expose the hidden clip holding down the loadspace carpet.
  3. Use a trim tool, remove the clip located behind the left loadspace trim to release the carpet.
8

Move aside the loadspace carpet.

  • Pull away the front left section of the loadspace carpet for access underneath.
9

Remove the deployable side step connector covers.

  1. Unclip the deployable side step connectors from the vehicle body.
  2. Remove and discard the connector covers.
10

Install bracket (J).

  • Install the bracket to the body with 2 fixings (J1). Torque: 10Nm
11

Install the RBM(I).

  • Install the module to the bracket with 2 fixings (I1). Torque: 6Nm
12

Connect the RBM.

  • Connect the deployable side step connectors to the module.
13
NOTE
  • Action 1 must be completed before proceeding to action 2.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment to navigate to 'Diagnostics' section and follow the steps below.

  1. Within Vehicle Applications – Select ‘RUN’ for ‘Add/Remove Deployable Side Steps', then select ADD.
  2. Within Module Programing – Select ‘RUN’ for ‘RBM - Software - Replace Module’.
    3. To enable the changes on the vehicle
    Switch ignition off.
    Close all doors.
    Lock the vehicle.
    Wait 5 minutes.
    To confirm changes
    Unlock the vehicle.
    Reset Infotainment Screen (Refer to 'Touchscreen' settings in Owners handbook for detailed procedure).
    Confirm 'Side - Step' tile is present on the Touchscreen.
14

Re-install loadspace fixings and trim removed.

  1. Move the loadspace carpet back into its original position and install with the removed fixing from 'Step 7'.
  2. Install the 3 removed loadspace carpet clips 'Step 6'.
  3. Install the removed D-Loops 'Step 5'.
  4. Install the removed luggage compartment treadplate 'Step 4'.
  5. Install the removed spare wheel or tool kit tray 'Step 3'.
  6. Install the removed loadspace components 'Step 2'.
15

Open all doors and raise and support the vehicle.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section '100-02 Jacking and Lifting'.
16

If installed to your vehicle, partially remove the front mud flap.

  • Remove 3 fixings
17

Remove the transmission undershield.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section 501-02 Front End Body Panels / Transmission Undershield'.
18
NOTE
  • Repeat this step on the other side of the vehicle.

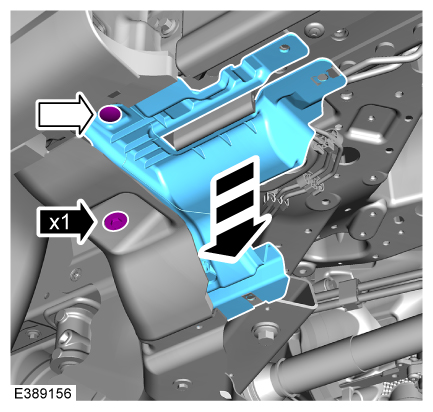

Remove the jacking point cover.

  1. Remove clip (white arrow).
  2. Remove fixing.
19
NOTE
  • Repeat this step on the other side of the vehicle.

Remove and discard the rear air deflector. This part must not be reinstalled.

  • Remove 2 fixings and remove the rear air deflector.
20

Remove the rear-left and right undershields.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section 501-02 Front End Body Panels / Left Undershield'.
  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section 501-02 Front End Body Panels / Right Undershield'.
21
NOTE
  • Repeat this step on the other side of the vehicle.

Remove the rear rocker panel moulding.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section '501-08: Exterior Trim and Ornamentation / Rear Rocker Panel Moulding'.
22
NOTE
  • Repeat this step on the other side of the vehicle.

Remove the front rocker moulding.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section '501-08: Exterior Trim and Ornamentation / Front Rocker Panel Moulding'.
23
NOTE
  • Repeat this step on the other side of the vehicle.

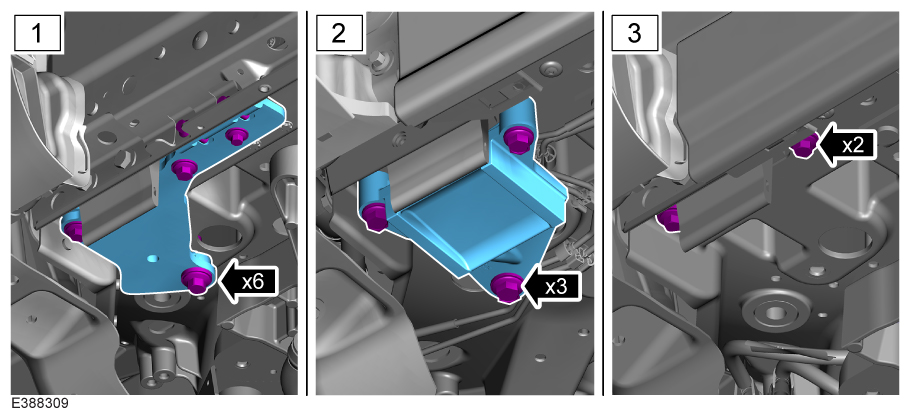

Depending on vehicle variant, you may be required to remove any fixings or front mounting brackets in the area under the removed jacking point cover.

  • Variant 1 = Remove 6 fixings and mounting bracket.
  • Variant 2 = Remove 3 fixings and mounting bracket.
  • Variant 3 = Remove 2 fixings.
24
NOTE
  • Repeat this step on the other side of the vehicle.

Removing the body harness blanking plug.

  1. Locate and unclip the body harness blanking plug from underneath the vehicle, located near the rear wheel.
  2. Remove the blanking plug from the connector.
25
NOTE
  • Repeat this step on the other side of the vehicle.
  • Guide line is not exactly the same as the cut line where arrowed.

Modify the jacking point cover.

  1. Identify the cut guide line. Paint over the cut guide lines to make the cut guide lines clearer.
  2. Use a suitable tool to measure and cut the illustrated section.
  3. Discard the removed blue section.
26

Modify the transmission undershield.

  1. Identify both cut guide lines. Paint over the cut guide lines to make them clearer if required.
  2. Use a suitable tool to cut the illustrated sections and discard the removed blue sections.
27
NOTE
  • Repeat this step on the other side of the vehicle.

Modify the rear undershield.

  1. Using the existing cut guide line on the undershield as a reference, measure and mark the remaining cut line as illustrated. Paint over the cut guide lines to make them clearer if required.
  2. Use a suitable tool to cut the illustrated section and discard the removed blue section.
28

Identify which 'Jacking Point' is required for each side of the vehicle, as there may be two different types (left or right side).

Bill Of Materials Part Number Quantity
Front Jacking Point (A) M8EM-101E60-AC 2
Rear LH Jacking Point (B) M8EM-101E62-BD 1
Rear RH Jacking Point (B) M8EM-101E62-AD 1
Rear LH Jacking Point Harness Bracket (C) M8EM-112B19-BB 1
Rear RH Jacking Point Harness Bracket (C) M8EM-112B18-FB 1
29
NOTE
  • Repeat this step on the other side of the vehicle.

Jacking point installation check.

  1. The jacking point cutouts must align with the Self Piercing Rivet (SPR) on the body (arrowed).
  2. Inspect each jacking point to make sure it sits flush against the vehicle body floor panel and sill flange.
  3. Verify correct installation at all four corners.
30
NOTE
  • Repeat this step on the other side of the vehicle.

Installing the front jacking point (A).

  1. Install, but do not fully tighten the vertical fixing (A1) first.
  2. Install, but do not fully tighten the remaining 2 fixings (A1).
31
NOTE
  • Repeat this step on the other side of the vehicle.

Fully tighten the fixings.

  1. Fully tighten the vertical fixing (A1) first. Torque: 24Nm
  2. Fully tighten the remaining 2 fixings (A1). Torque: 24Nm
32
NOTE
  • Repeat this step on the other side of the vehicle.

Installing the rear jacking point (B) and the harness bracket (C).

  1. Install, but do not fully tighten the vertical fixing (A1) first.
  2. Install, but do not fully tighten the remaining 2 fixings (A1).
33
NOTE
  • Repeat this step on the other side of the vehicle.

Fully tighten the fixings.

  1. Fully tighten the vertical fixing (A1) first. Torque: 24Nm
  2. Fully tighten the remaining 2 fixings (A1). Torque: 24Nm
34
NOTE
  • Repeat this step on the other side of the vehicle.

Install the front rocker panel moulding, replacing any broken clips with clips (A3).

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section '501-08: Exterior Trim and Ornamentation / Front Rocker Panel Moulding'.
35
NOTE
  • Repeat this step on the other side of the vehicle.

Install the rear rocker panel moulding, replacing any broken clips with clips (A2) and (A3).

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section '501-08: Exterior Trim and Ornamentation / Rear Rocker Panel Moulding'.
36
NOTE
  • Repeat this step on the other side of the vehicle.

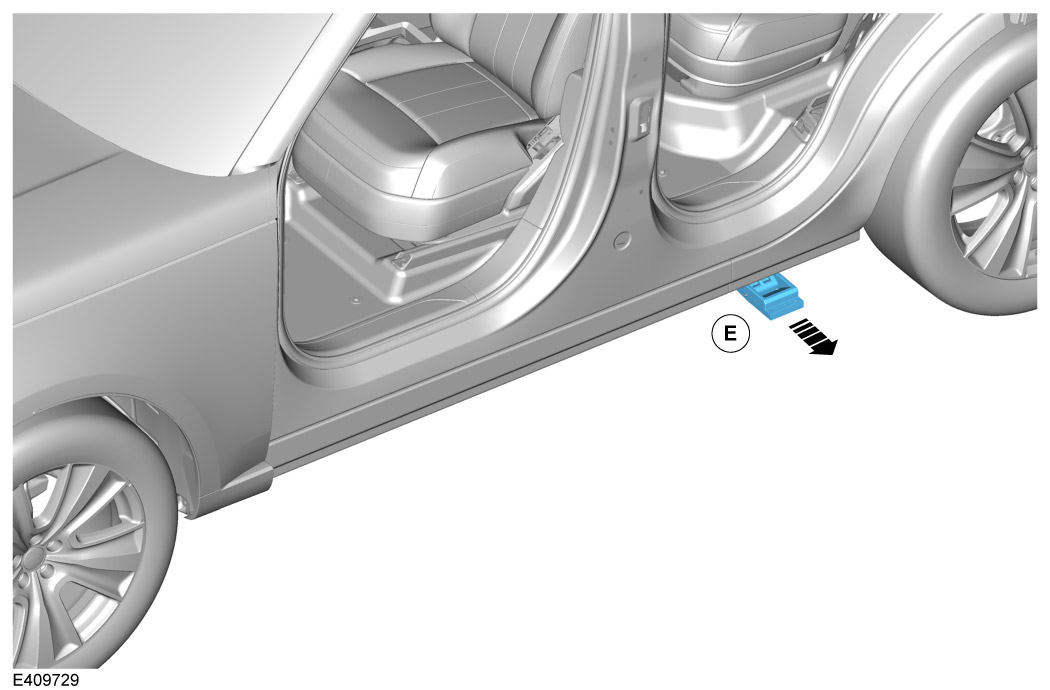

Before installation scan QR code on motor link (E).

  • When scanned, If the date code on the motor link is before date code “220225” (for example 25/02/22) then the torque of the fixing in 'Step 63' must be checked. (This will be completed when you get to 'Step 63').
  • If the date code on the motor link is after “220225” then 'Step 63' will not be required.
37
NOTE
  • Repeat this step on the other side of the vehicle.

Install the front deployable side step brackets (D). Observe the location identifier 'L/F' (left side front) or 'R/F' (right side front) on the brackets.

  1. Install, but do not fully tighten 2 fixings (D1).
  2. Install, but do not fully tighten fixing (D2).
  3. To achieve an accurate installation, measure the bracket to body gap with a feeler gauge. A 2mm gap must be achieved around each fixing.
38
NOTE
  • This step is only applicable if you have ordered version 2 of the 'Deployable Side Step Motor Links and Idlers'.
  • Repeat this step on the other side of the vehicle.

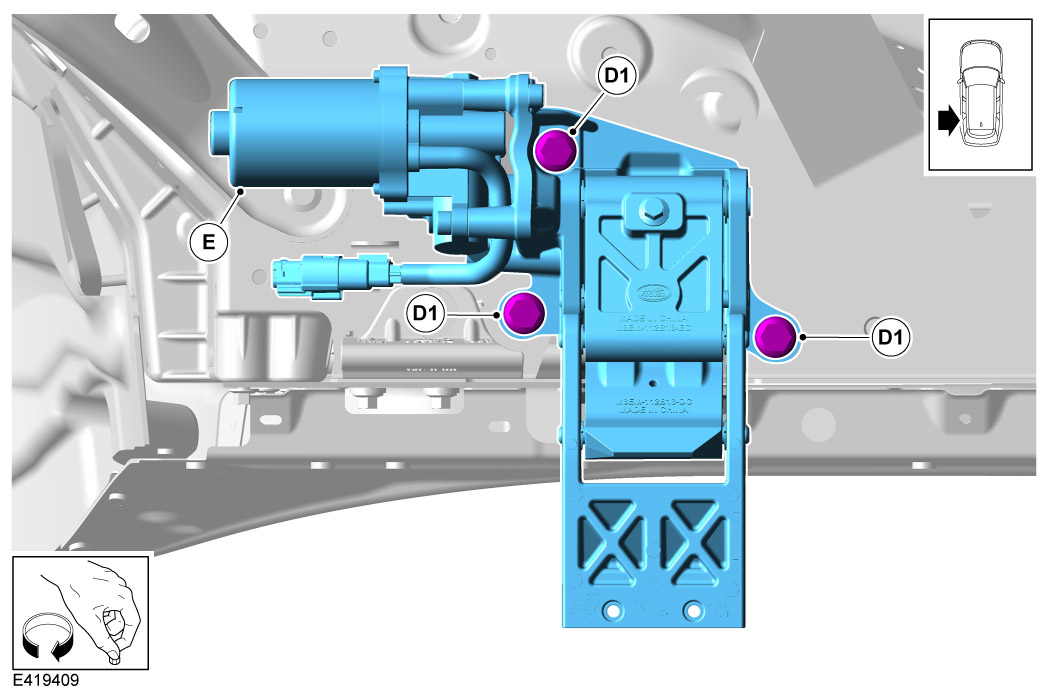

Install the deployable side step rear motor bracket (E). Observe the location identifier 'L/R' (left side rear) or 'R/R' (right side rear) on the brackets.

  1. Install, but do not fully tighten 3 fixings (D1).
  2. To achieve an accurate installation, measure the bracket to body gap with a feeler gauge. A 2mm gap must be achieved around each fixing.
  3. Then proceed from 'Step 40'.
39
NOTE
  • This step is only applicable if you have ordered version 1 of the 'Deployable Side Step Motor Links and Idlers'.
  • Repeat this step on the other side of the vehicle.

Install the deployable side step rear motor bracket (E). Observe the location identifier 'L/R' (left side rear) or 'R/R' (right side rear) on the brackets.

  1. Install, but do not fully tighten 2 fixings (D1).
  2. To achieve an accurate installation, measure the bracket to body gap with a feeler gauge. A 2mm gap must be achieved around each fixing.
40
NOTE
  • Repeat this step on the other side of the vehicle.

Connect the deployable side step motor.

  1. Clip the deployable side step motor connector to the rear jacking point bracket (C).
  2. Connect body harness connector from 'Step 24' to the motor connector.
  3. Pull on the connector to verify it is latched correctly.
41

Lower the vehicle.

42

Inspect that the deployable side step motors are working correctly.

  • Make sure 'Roof Access' mode is selected using the vehicle's Touchscreen to deploy the deployable side step brackets.
43

Raise the vehicle.

44
NOTE
  • This step is only applicable if you have ordered version 1 of the 'Deployable Side Step Motor Links and Idlers'.
  • Repeat this step on the other side of the vehicle.

Continue to install the rear deployable side step motor bracket (E).

  1. Install, but do not fully tighten fixing (D1).
  2. To achieve an accurate installation, measure the bracket to body gap with a feeler gauge. A 2mm gap must be achieved around each fixing.
45
NOTE
  • Repeat this step on the other side of the vehicle.
  • This step is only applicable if you have ordered version 2 of the 'Deployable Side Step Motor Links and Idlers'.

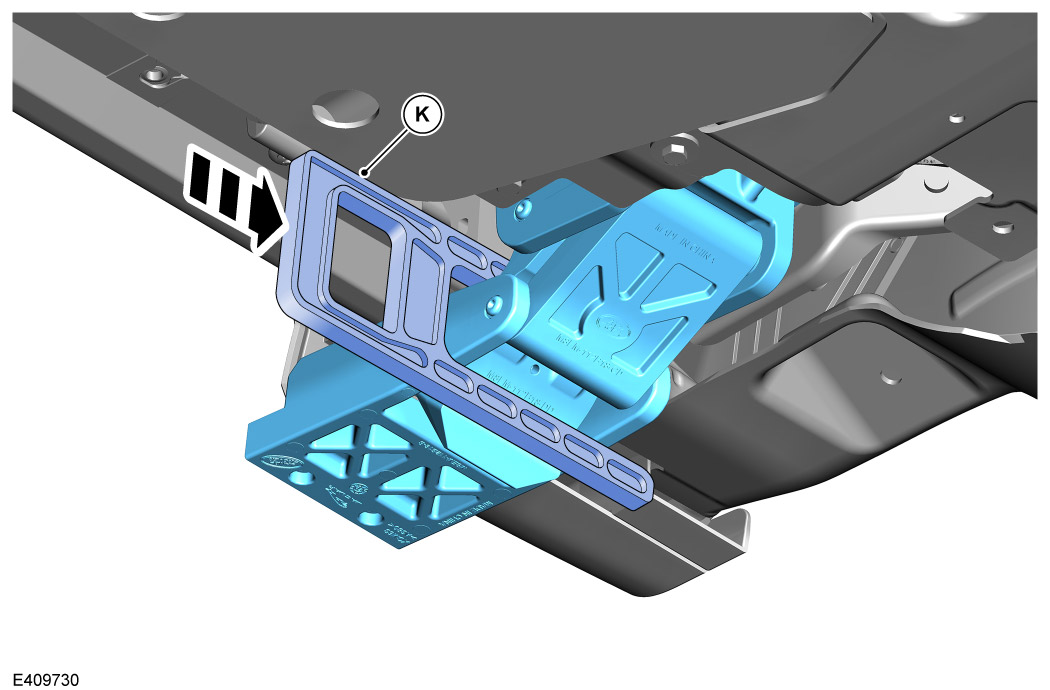

Insert special tool (K) onto the front idler to keep it in the open position.

46
NOTE
  • Repeat this step on the other side of the vehicle.

Gap inspection.

  • Prior to installing the side steps (F), inspect that there is an even gap between the metal finisher and the rubber step part on the side step. Gap must be no more than 1.75mm for the top gap.
47
NOTE
  • Repeat this step on the other side of the vehicle.

Install the side step (F).

  1. The T-nut on the step (green part in illustration), must align with the holes in the front and rear brackets using a suitable guide tool.
  2. Install, but do not fully tighten 2 fixings (F1) to install the side step onto the front bracket.
  3. Install, but do not fully tighten 2 fixings (F1) to install the side step onto the rear bracket.
48
NOTE
  • Repeat this step on the other side of the vehicle.

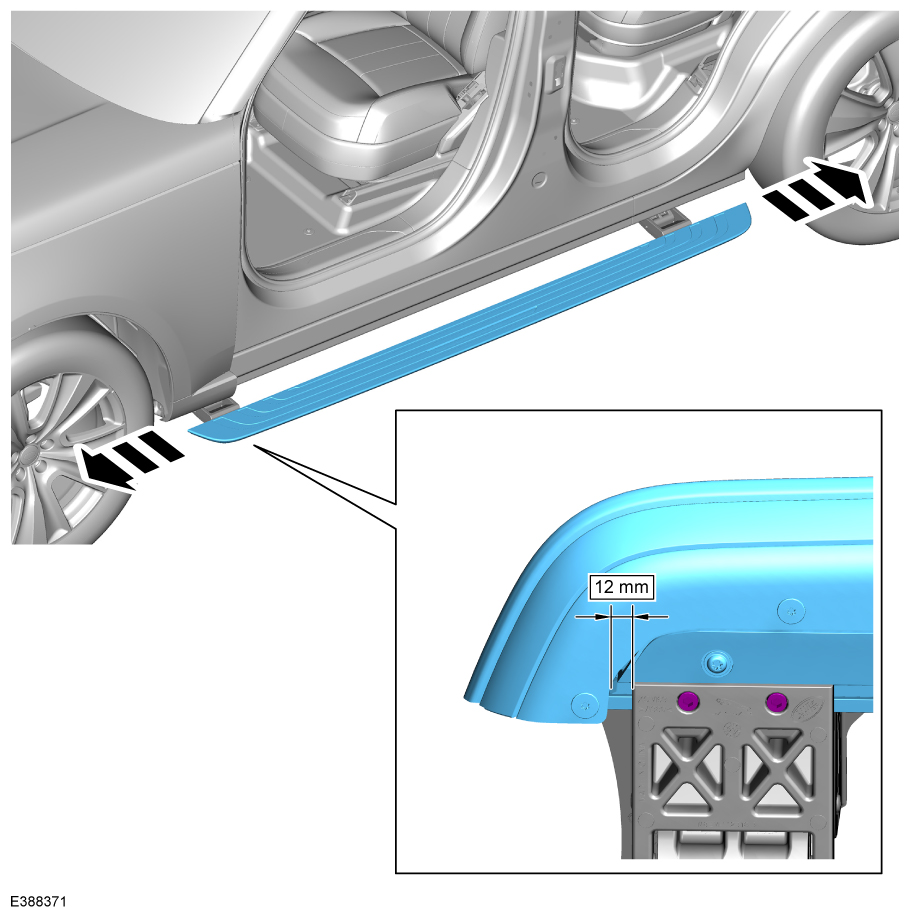

Position the side step board.

  1. When in place, slide the side step board rearward to its furthest rearward position.
  2. A gap of approximately 12mm from the side step board to the front bracket will show the correct positioning.
49
NOTE
  • Repeat this step on the other side of the vehicle.

Inspect that the side step sits correctly with the front idler and rear motor link before final tightening of fixings.

  • Make sure the contact faces of the side step are flush with the front idler and rear motor link. If the step and front idler or rear motor link are not flush then the holes will not correctly line up and there will be a risk of cross-threading the fixings.
50
NOTE
  • Repeat this step on the other side of the vehicle.

Tighten all fixings on the front idler and rear motor link.

  • Fully tighten 4 side step fixings (F1). Mark fixings when the recommended torque has been achieved. Torque: 10Nm
51
NOTE
  • Repeat this step on the other side of the vehicle.
  • This step is only applicable if you have ordered version 2 of the 'Deployable Side Step Motor Links and Idlers'.

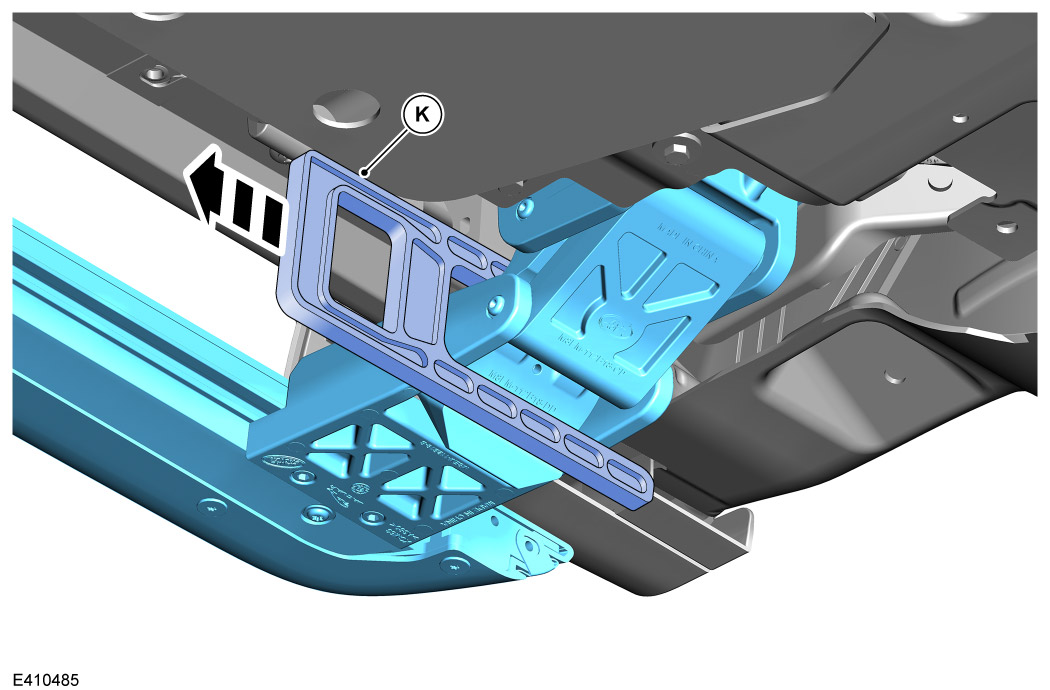

Remove special tool (K) from the front idler.

52

Lower the vehicle and connect an approved battery support unit to prevent the vehicle's 12V battery from discharging.

53
CAUTION
  • This is a critical step to make sure the deployable side step brackets are aligned to the body. A Diagnostic Trouble Codes (DTC) “Obstruction Error” may show if actions are not followed.
NOTE
  • Repeat this step on the other side of the vehicle.

Test that the deployable side steps are working correctly.

  1. Turn off 'Deployable Side Step' from the Touchscreen (both side steps will stow).
  2. Turn on 'Deployable Side Step' from Touchscreen and select 'Roof access mode' (both side steps will deploy).
54

Raise the vehicle.

55
CAUTION
  • Tightening of fixing sequence must be followed. A DTC 'Obstruction Error' may show if sequence is not followed.
NOTE
  • Both 'Deployable' and 'Fixed Side Steps' shown in graphic. Tightening sequence is the same.
  • Repeat this step on the other side of the vehicle.

Fully tighten the side step bracket fixings in the sequence shown.

  • 1-5: M10 Torque: 60Nm
  • 6: M12 Torque: 70Nm
56
NOTE
  • This step applies only to 'Deployable Side Step Motor Links and Idlers kits' VPLKP0500, VPLKP0499, VPLXP0514, and VPLXP0515.
  • Perform this action on all four brackets.

Using the JLR service lube (or equivalent lithium grease spray), spray the highlighted areas on both sides of the bracket to avoid unwanted noise when in operation.

57
NOTE
  • This step applies only to 'Deployable Side Step Motor Links and Idlers kits' VPLKP0500, VPLKP0499, VPLXP0514, and VPLXP0515.
  • Perform this action on all four brackets.

Using the JLR service lube (or equivalent lithium grease spray), spray the highlighted areas on both sides of the bracket to avoid unwanted noise when in operation.

58
CAUTION
  • Rear air deflectors must not be reinstalled that were removed in 'Step 19'.

Install the modified rear-left and right undershields.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section 501-02 Front End Body Panels / Left Undershield'.
  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section 501-02 Front End Body Panels / Right Undershield'.
59
NOTE
  • Repeat this step on the other side of the vehicle.
  • Side step removed in illustration for better clarity.

Install the modified jacking point cover.

  1. Install clip (white arrow).
  2. Install fixing. Torque: 5Nm
60

Install the modified transmission undershield.

  • Log into TOPIX and enter your 17 character 'Vehicle Identification Number' and navigate to 'Workshop Manual' section 501-02 Front End Body Panels / Transmission Undershield'.
61
NOTE
  • Repeat this step on the other side of the vehicle.

Install the front mud flaps if originally removed.

  • Install 3 original fixings.
  • Small fixings. Torque: 4Nm
  • Large fixing. Torque: 5Nm
62

Lower the vehicle and close all doors.

63
NOTE
  • This step is only applicable if the date on the QR scan in installation 'Step 36' is before date code “220225” (for example 25/02/22).
  • Repeat this step on the other side of the vehicle.

Partially deploy the side steps (midway) and tightening the fixing.

  1. Remove the access panel to the rear junction box and locate R1F27 30 Amp fuse.
  2. With the assistance of a second person retract the side steps by selecting the 'Roof access mode', at this point the fuse needs to be removed.
  3. When timed correctly this will stop and hold the deployable side steps in the (midway) position for tightening the fixing. Torque: 24Nm
  4. Install the fuse and clear all DTC.
64
CAUTION
  • The deployable side step brackets must be aligned to the body. A DTC Obstruction Error may show if actions are not followed.

Final testing of the deployable side steps.

  1. Turn off 'Deployable Side Steps on the Touchscreen (side steps will stow).
  2. Turn on 'Deployable Side Steps on the Touchscreen and select 'Roof access mode' (side steps will deploy).
  3. Repeat steps 1-2 a minimum of 6 times. When complete, leave the side steps deployed before proceeding to the next step.
  4. Disconnect the approved battery support unit for the 12V battery.
65

With the engine running connect the Vehicle Communication Interface (VCI) to the vehicle to check if any DTC are present on the RBM. If DTC are present follow TOPIX workflow for DSS to fault find and clear the codes.

66
NOTE
  • Using the Touchscreen deactivate roof access mode.

The deployable side steps must operate correctly and are activated for the customer handover.

© Land Rover 2016
