LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

RANGE ROVER VELAR

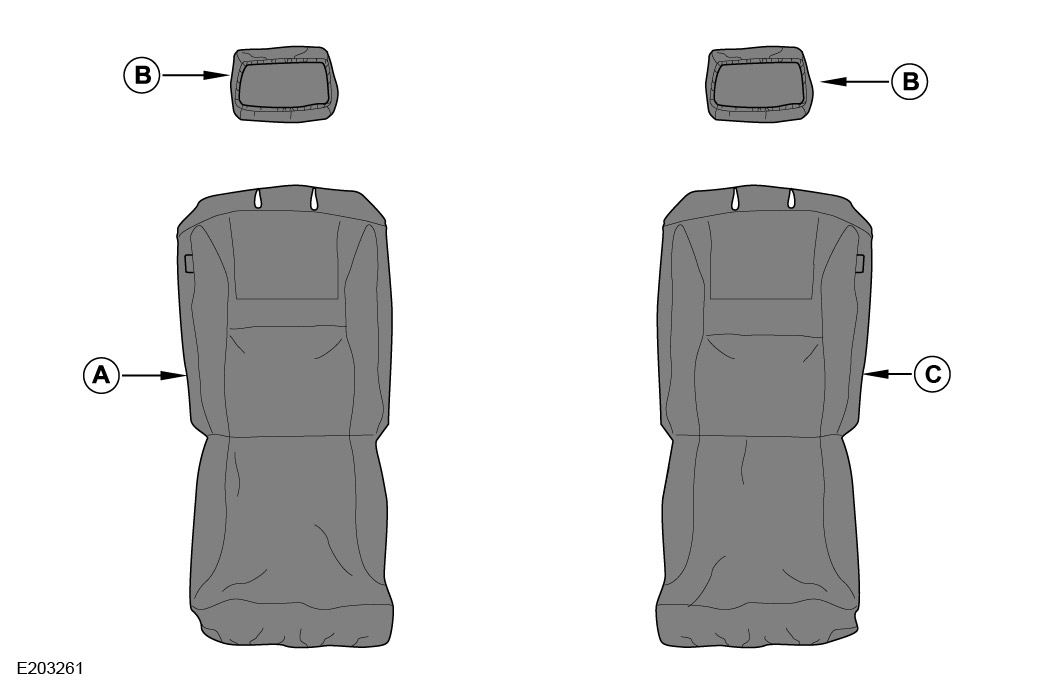

PREMIUM SEAT COVERS - FRONT ROW

VPLYS0421

FITTING INSTRUCTION

WARNING
  • Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
Fitting Instruction
NOTE

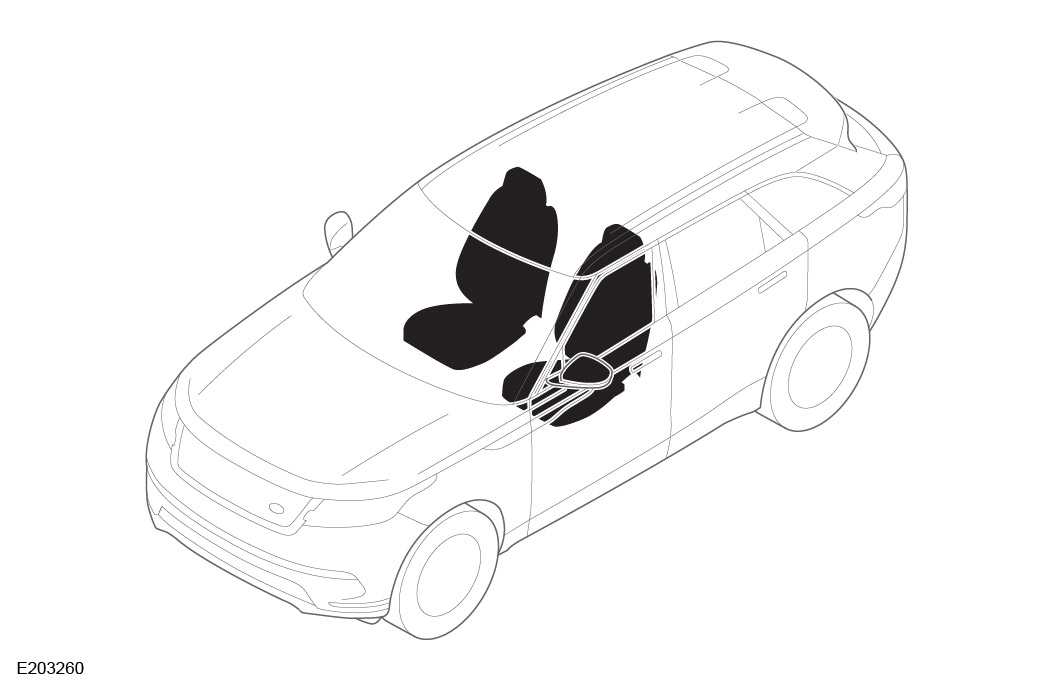

  • Illustrations show the front right seat, front left seat is similar.
1

Raise the front row seat head restraint.

2

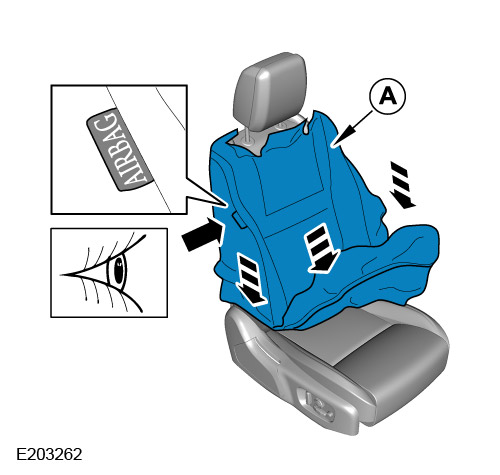

WARNING
  • Make sure the airbag label is positioned towards the outside of the seat. This is the side of the seat closest to the door.

Place the premium seat cover over the top of the front row seat head restraint and pull down over the seat.

3

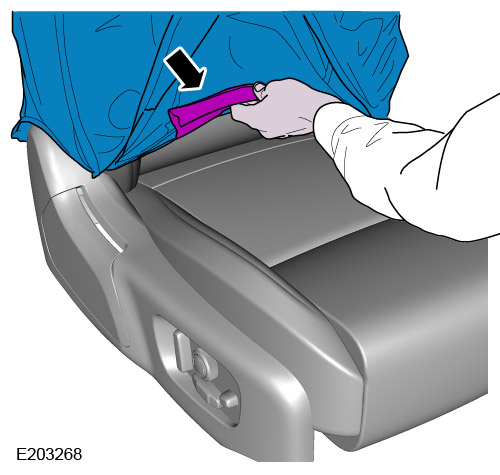

Locate the premium seat cover position retainer on the underside of the premium seat cover.

4

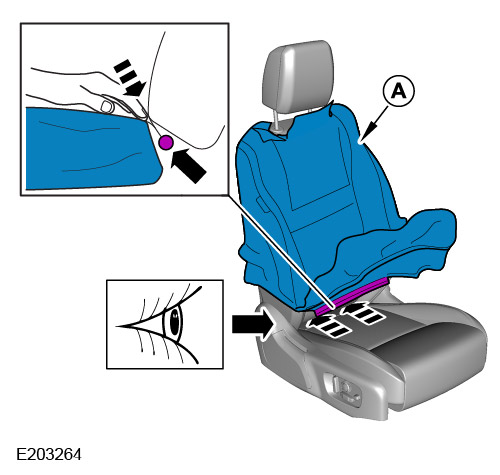

Push the premium seat cover position retainer down into the groove between the seat cushion and the front row seat backrest.

5

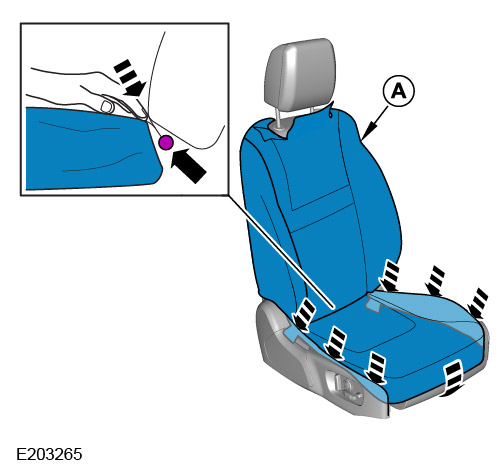

Push the premium seat cover position retainers down into the grooves between the seat cushion and the front row seat trim.

6

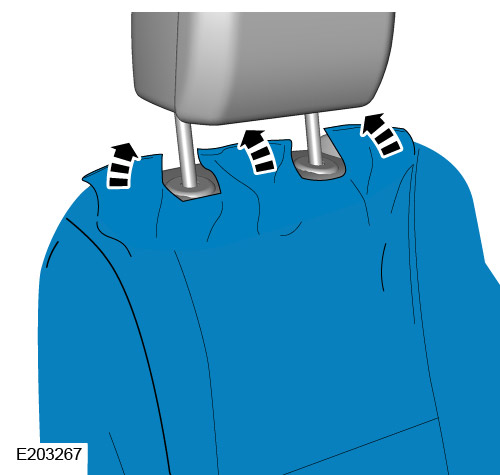

Pass the premium seat cover top fixing flaps over the top of the front row seat backrest.

7

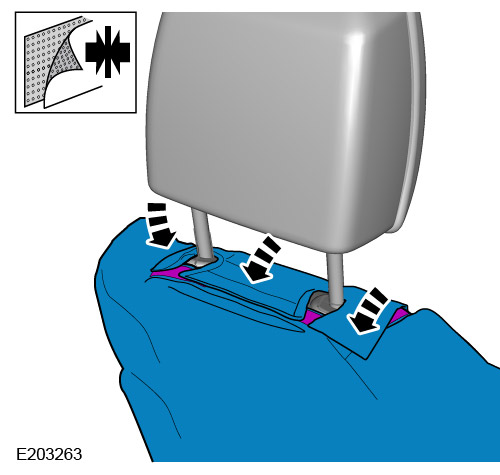

Fasten the top fixing flaps to the velcro strips to secure the top of the premium seat cover in position.

8

Place the head restraint cover over the head restraint.

9

Return the front row seat head restraint to the required position.

© Land Rover 2016
