LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

RANGE ROVER VELAR

SPORTS PEDAL KIT

VPLYS0470

FITTING INSTRUCTION

WARNING
  • Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
Fitting Instruction
WARNING
  • Do not fit the sports pedal kit using sharp or metal tools.
1

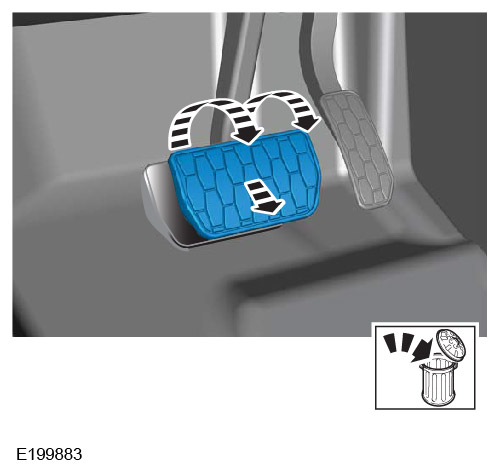

Remove the plastic cover from the brake pedal.

2

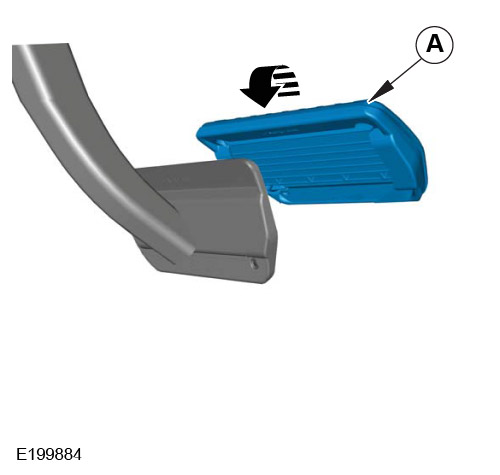

Place the top of the sports pedal cover over the top of the brake pedal.

3

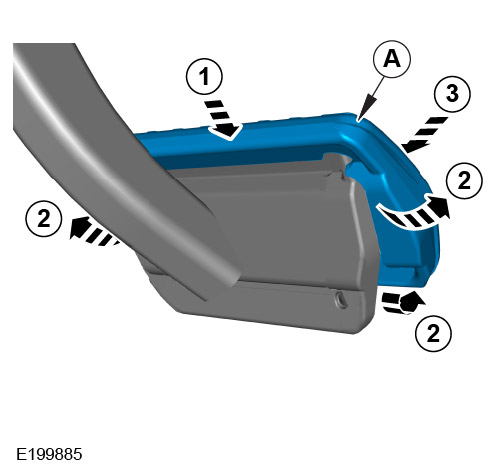

Wrap the sports pedal cover around the brake pedal.

  1. Push the sports pedal cover downwards so it engages over the top of the brake pedal.
  2. Pull the side and bottom tabs of the sports pedal cover outwards. This allows the sports pedal cover to fit over the top of the brake pedal.
  3. Push the sports pedal cover onto the brake pedal. The side and bottom tabs should engage over the sides and bottom of the brake pedal to secure the sports pedal cover to the brake pedal.
4

Push the sports pedal cover side and bottom tabs inwards towards the centre of the back of the brake pedal. Make sure the sports pedal cover tabs are flat.

5

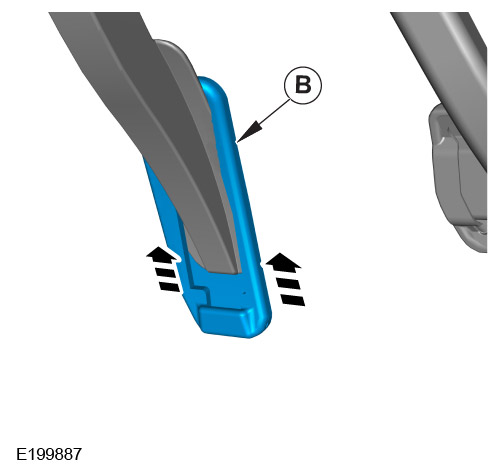

Place the sports pedal cover over the lower part of the accelerator pedal and slide upwards.

6

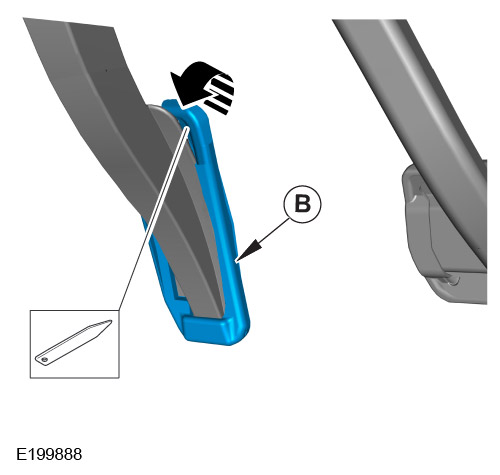

Pull the top part of the sports pedal cover over the top of the accelerator pedal. Use a tool to assist if required.

7

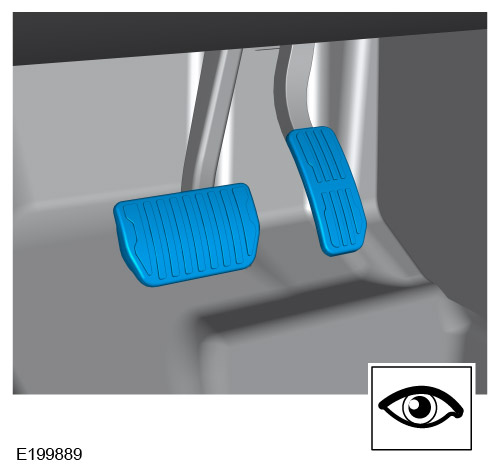

Make sure that both of the sports pedal covers are positioned correctly over the accelerator and the brake pedals.

© Land Rover 2016
