LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

DEFENDER

WHEEL ARCH PROTECTION - REPLACEMENT - 90

704123487 / 704123488 / 704123490 / 704123491 / 704123492 / 704123493 / LR137470 / 704123489 / 704123498 / 704123499 / 524123473 / 524123472 / 704123524 / 704123525 / 704123532 / 704123534 / 704123533 / 704123535

FITTING INSTRUCTION

WARNING
  • Incorrectly installed accessories can be dangerous. Read these instructions carefully before ordering and installing this accessory to make sure it is compatible with your vehicle. Always follow these instructions. If you have any questions, contact your nearest approved Jaguar Land Rover (JLR) retailer.
Bill of Materials Vehicle Replacement Service Part Number - Grained Replacement Service Part Number - Gloss Black
(A) Front Wheel Arch Extension - RH Defender 90 704123487 524123473
(A) Front Wheel Arch Extension - LH Defender 90 704123488 524123472
(A) Front Wheel Arch Extension - RH, North American Specification (NAS) - Pre 24MY only Defender 90 704123490 N/A
(A) Front Wheel Arch Extension - LH, North American Specification (NAS) - Pre 24MY only Defender 90 704123491 N/A
(A) Front Wheel Arch Extension - RH, North American Specification (NAS) - 24MY onwards only Defender 90 704123492 704123524
(A) Front Wheel Arch Extension - LH, North American Specification (NAS) - 24MY onwards only Defender 90 704123493 704123525
(B) Rear Wheel Arch Extension - RH Defender 90 LR137470 704123532
(B) Rear Wheel Arch Extension - LH Defender 90 704123489 704123534
(B) Rear Wheel Arch Extension - RH, North American Specification (NAS) Defender 90 704123498 704123533
(B) Rear Wheel Arch Extension - LH, North American Specification (NAS) Defender 90 704123499 704123535

Warnings / Cautions / Notes

WARNING
  • For your safety, you must wear suitable personal protective equipment when using the cleaner or adhesion promoter.
CAUTION
  • Protect the surrounding paintwork and trim to avoid damage.
  • Make sure the vehicle and part being installed are clean and dry at the correct temperature. In hot climate countries the panel temperatures could be greater than 40°C if the vehicle is left in the sun. Move the vehicle into the workshop and allow 2 hours to reach workshop temperatures before installing the accessory. Use infa-red thermometer JLR-60051001 to inspect the vehicle panel temperature is in the correct range before installing the accessory (see image below for the correct temperature range).
NOTE
  • These instructions illustrate the left side of the vehicle. The right side is installed in a similar manner.
Fitting Instruction
1
NOTE
  • Both front and rear wheel arch protection panels are shown in the illustration.

Verify that all clips are present and correctly positioned on the replacement wheel arch protection panel. Replace any missing clips before installation.

  • If you are replacing a front wheel arch protection see steps 2-11.
  • If you are replacing a rear wheel arch protection see steps 12-23.
2
CAUTION
  • Remove any remaining clips left behind from the vehicle body.

Remove the old front wheel arch protection panel.

  1. Using a plastic trim tool, carefully remove the wheel arch protection panel that is attached with x9 clips.
  2. If present, disconnect the side marker lamp connector while removing the wheel arch protection panel.
3

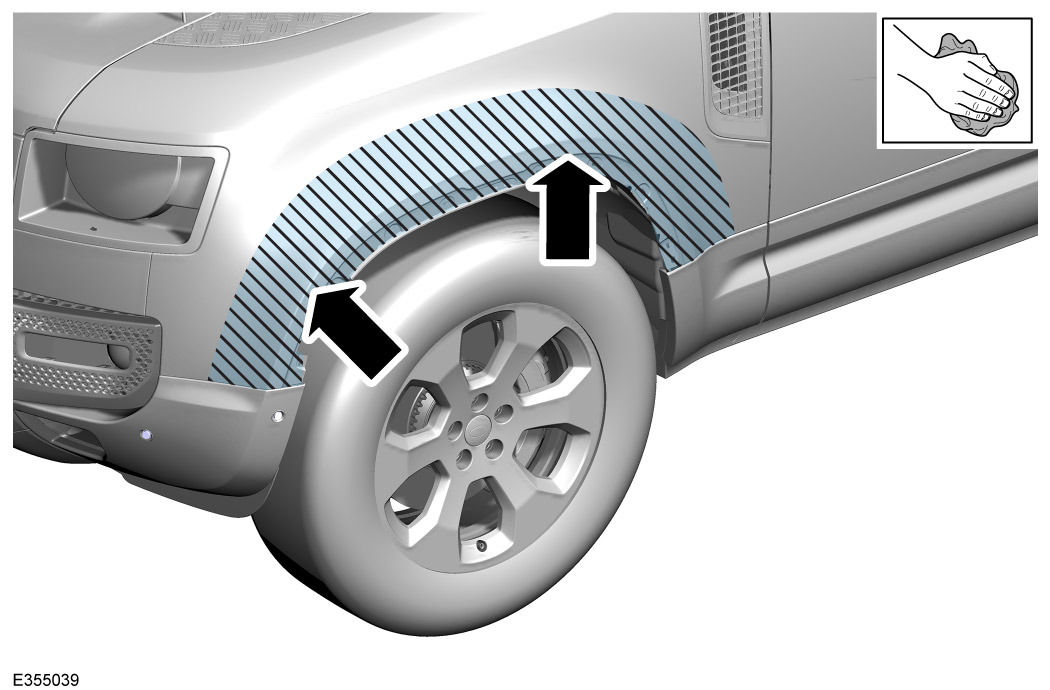

Remove any adhesive residue that may remain.

  • Clean the highlighted area using a clean lint-free cloth dampened with 50 % isopropanol/water mix (50% minimum alcohol content).
4
NOTE
  • The clips must not engage into the body at this stage.

Offer up the new front wheel arch protector (A) for masking purposes only.

  • Temporarily fasten the wheel arch protector to the body using a few strips of suitable tape.
5

Apply tape for protection above the front wheel arch protector (A).

  1. Apply suitable tape to mask the top edge of the wheel arch protector on the vehicle body.
  2. Remove the wheel arch protector.
6
CAUTION
  • When opened, use the sachet immediately on the area being worked on, as it will dry out quickly.

Clean area.

  1. Using the cleaner sachet supplied in the kit, clean a 20mm strip on the vehicle body from the lower edge of the tape on the front wheel arch.
  2. Allow a minimum of 2 minutes for drying before proceeding.
7
NOTE
  • When opened, use the sachet or pen immediately on the area being worked on, as it will dry out quickly.
  • To activate the adhesion promoter, hold the tube between your finger and thumb and squeeze the middle of the tube until you hear a clicking sound. Gently shake the tube, and the fluid will flow to the tip.

Apply the adhesion promoter pen or wipe sachet depending on what comes in your kit on the front wheel arch.

  1. Using the adhesion promoter supplied in the kit, wipe or apply a 20mm strip on the vehicle body from the lower edge of the tape on the front wheel arch.
  2. Allow a minimum of 5 minutes for drying. During this time, remove all masking tape from the vehicle.
8

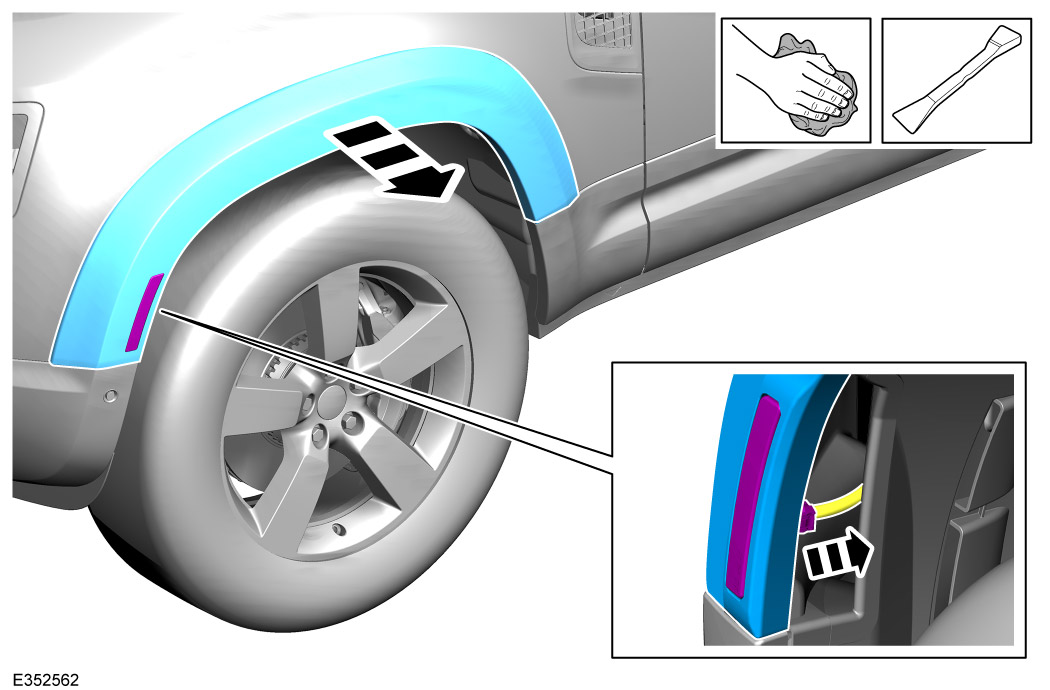

Install the front wheel arch protector (A).

  1. If installing the wheel arch protector with indicator lamps, connect the indicator lamp connector first.
  2. Attach the lower tabs to the vehicle body trim.
  3. Push the wheel arch protector into the vehicle until it clips into place.
9

Peel away the adhesion strip.

  • Apply consistent pressure to the wheel arch protector while peeling the backing away from the adhesion strip.
  • If the backing for the adhesion strip becomes detached or cannot be accessed, carefully peel the backing away from the other end of the strip.
10

Use a lint-free cloth to apply pressure to the surface of the front wheel arch protector, focusing on the area of the adhesive tape.

11

Inspect the front wheel arch protector.

  • Note that the new wheel arch protection is designed with a deliberate overhang on the front and rear edges, which means it will not sit completely flush with the existing vehicle trim.
  • Carefully inspect for any gaps between the wheel arch protector and the vehicle body. If any gaps are visible, apply firm pressure until the protector adheres securely.
12
NOTE
  • The following steps 'ONLY' apply to the replacement of the rear wheel arch protector.
  • Inspect all trim clips and replace any that are damaged. Trim clips must be correctly installed to the trim panel. Failure to follow this instruction will result in a rattle or vibration.

Remove the rear fender moulding.

  1. Open the door.
  2. Remove the rear fender moulding attached by x4 clips.
13
CAUTION
  • Remove any remaining clips left in the vehicle body.

Remove the old rear wheel arch protector.

  1. Using a plastic trim tool remove the wheel arch protector, attached by x10 clips.
  2. If present disconnect the side marker lamp while removing the wheel arch protector.
14
CAUTION
  • Make sure there is no adhesive residue left behind.

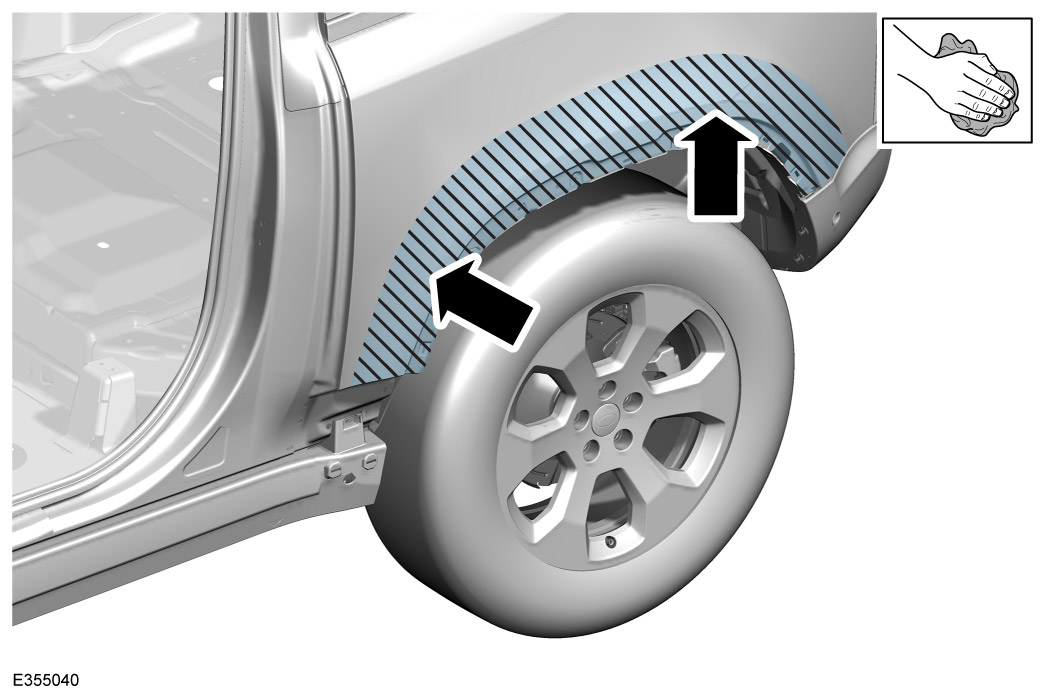

Clean the highlighted area using a clean lint-free cloth dampened with 50 % isopropanol/water mix (50% minimum alcohol content).

15
NOTE
  • The clips must not engage into the body at this stage.

Offer up the rear wheel arch protector (B) for masking purposes only.

  • Temporarily fasten the wheel arch protector to the body using a few strips of suitable tape.
16

Apply tape for protection above the rear wheel arch protector (B).

  1. Apply suitable tape to mask the top edge of the wheel arch protector on the vehicle body.
  2. Remove the wheel arch protector.
17
NOTE
  • Front wheel arch shown in image, but rear is similar.
  • When opened, use the sachet immediately on the area being worked on, as it will dry out quickly.

Clean area.

  1. Using the cleaner sachet supplied in the kit, clean a 20mm strip on the vehicle body from the lower edge of the tape on the front wheel arch.
  2. Allow a minimum of 2 minutes for drying before proceeding.
18
NOTE
  • Front wheel arch shown in image, but rear is similar.
  • When opened, use the sachet or pen immediately on the area being worked on, as it will dry out quickly.
  • To activate the adhesion promoter, hold the tube between your finger and thumb and squeeze the middle of the tube until you hear a clicking sound. Gently shake the tube, and the fluid will flow to the tip.

Apply the adhesion promoter pen or wipe sachet depending on what comes in your kit on the front wheel arch.

  1. Using the adhesion promoter supplied in the kit, wipe or apply a 20mm strip on the vehicle body from the lower edge of the tape on the front wheel arch.
  2. Allow a minimum of 5 minutes for drying. During this time, remove all masking tape from the vehicle.
19

Install the rear wheel arch protector (B).

  1. If installing wheel arch protector with a indicator lamp, connect the indicator lamp first.
  2. Attach the lower tabs to the vehicle body trim.
  3. Push the rear wheel arch protector into the vehicle until it clips into place.
20

Install the rear fender moulding.

  1. Push the rear fender moulding into the vehicle until it clips into place.
  2. Close the door.
21

Peel away the adhesion strip.

  • Apply consistent pressure to the wheel arch protector while peeling the backing away from the adhesion strip.
  • If the backing for the adhesion strip becomes detached or cannot be accessed, carefully peel the backing away from the other end of the strip.
22

Use a lint-free cloth to apply pressure to the surface of the rear wheel arch protector, focusing on the area of the adhesive tape.

23

Visually inspect the rear wheel arch protector.

  • Note that the new wheel arch protection is designed with a deliberate overhang on the front and rear edges, which means it will not sit completely flush with the existing vehicle trim.
  • Carefully inspect for any gaps between the wheel arch protector and the vehicle body. If any gaps are visible, apply firm pressure until the protector adheres securely.
  • For North American market inspect the functionality of the side marker lamps before customer handover.
