LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

DEFENDER

SPARE WHEEL LOCK

VPLEW0164 / VPLEW0165 / VPLLE0004 / VPLLE0005

FITTING INSTRUCTION

WARNING
  • Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to ordering and installation to make sure this accessory is applicable to your variant of vehicle. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
Accessory Kits Required Part Number
Spare Wheel Lock - Type 1 (see below image for wheel styles applicable to this kit) VPLEW0164 or VPLEW0165
Spare Wheel Lock - Type 2 (see below image for wheel styles applicable to this kit) VPLLE0004
Spare Wheel Lock - Type 3 (see below image for wheel styles applicable to this kit) VPLLE0005

Wheel Styles Applicable to Kits

NOTE
  • Inspect you have the correct part number and its compatible with your wheel style.

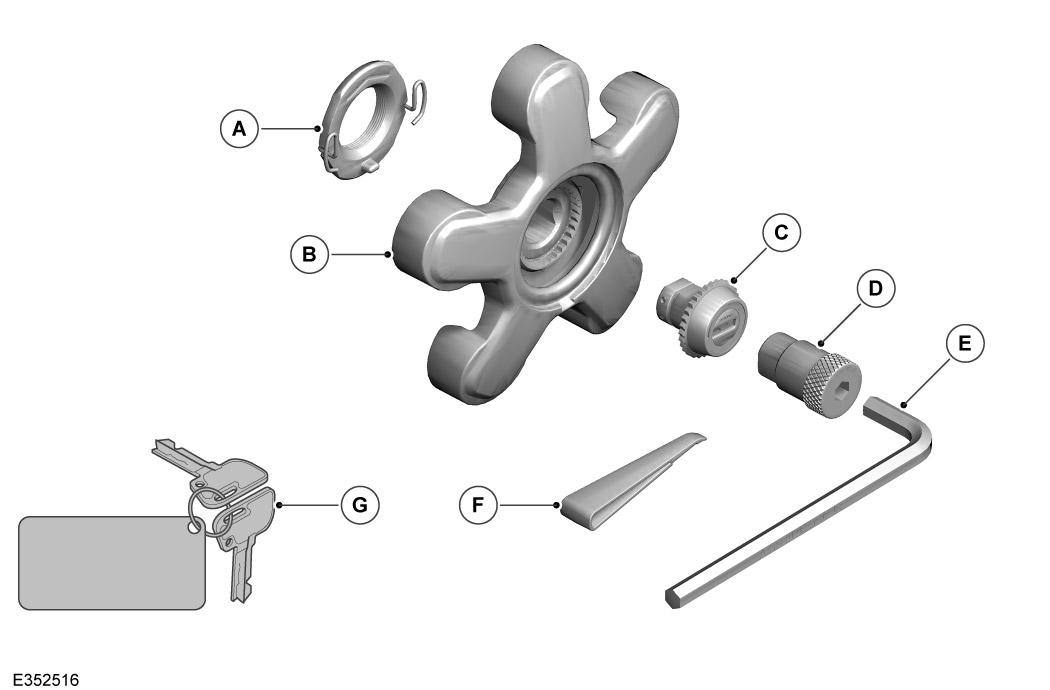

Spare Wheel Lock (Bill of Materials)

NOTE
  • Inspect parts in your kit before installation.
Bill Of Materials Replacement Service Part Number
(A) Retention Ring Available in complete kit only
(B) Module Available in complete kit only
(C) Cylinder Lock Barrel Available in complete kit only
(D) Adapter Available in complete kit only
(E) Hex Key Available in complete kit only
(F) Wheel Badge Removal Tool Available in complete kit only
(G) Key with key card Available in complete kit only

Warnings / Cautions / Notes

CAUTION
  • The 'Spare Wheel Lock' cannot be used alongside the 'Spare Wheel Cover'.
  • Fitting to an incompatible wheel style can cause damage to the wheel.
  • Do not drive vehicle with Rimgard modules installed without locking cylinder barrels (C).
NOTE
  • Take special care of the key card supplied. This needs to be presented to the Retailer/Authorized Repairer to order a replacement key. Replacement keys can only be ordered through a Retailer/Authorized Repairer.
  • This procedure contains some variation in the illustrations depending on vehicle specification, but the essential information is always correct.
  • Keep key with main vehicle key - Do Not Lose.
  • Any spare parts and tool bits should be handed over to the customer during the demonstration handover.
Fitting Instruction
1

Using the 'Wheel Badge Removal Tool' (F) remove and retain the centre cap badge from the spare wheel.

2

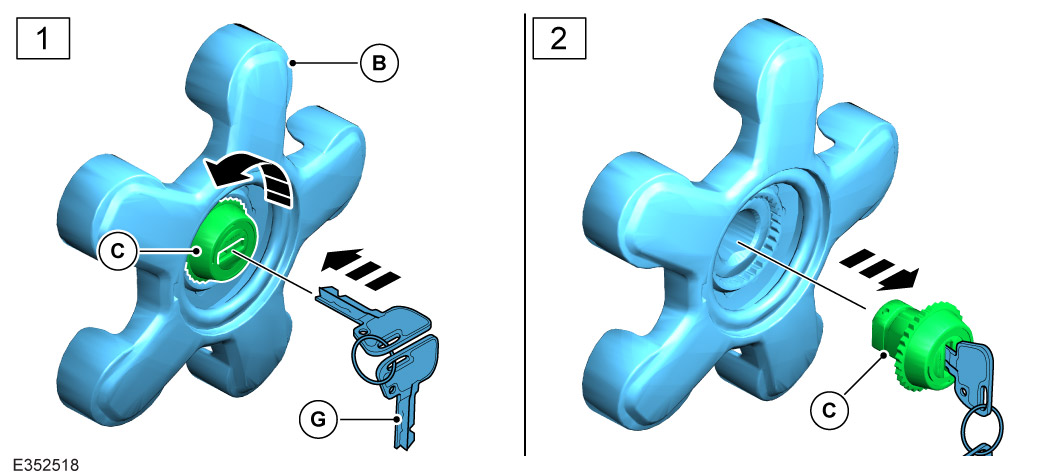

Remove the cylinder lock barrel from the module.

  1. Insert 'Key' (G) into the 'Cylinder Lock Barrel' (C) and turn the key 1/4 anticlockwise to unlock.
  2. Remove 'Cylinder Lock Barrel' (C) from 'Module' (B).
3

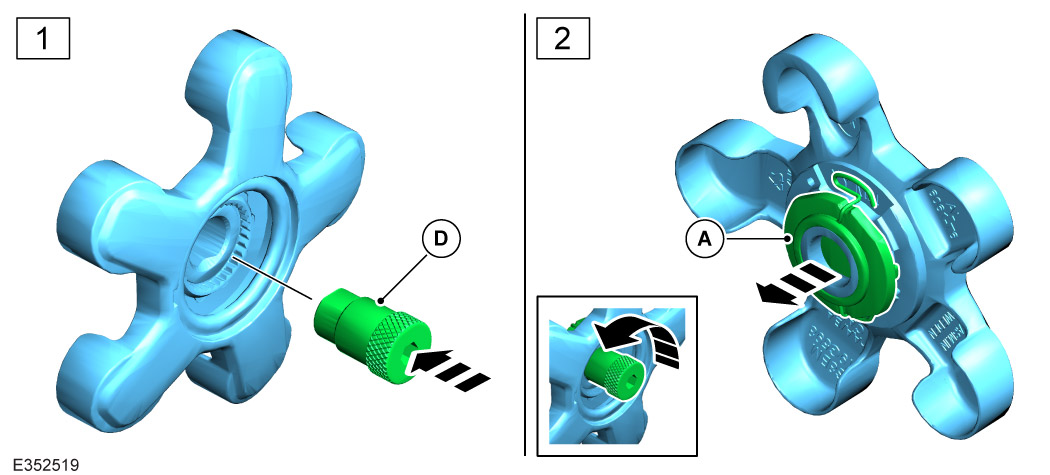

Remove the retention ring from the module.

  1. Insert 'Adapter' (D) into the module.
  2. Hold the 'Retention Ring' (A) while turning the 'Adapter' (D) anticlockwise to release the retention ring from the module. Then remove the adapter.
4
CAUTION
  • Make sure arrow is pointing upwards towards wheel bolt recess.

Install the retention ring to the spare wheel.

  1. Position 'Retention Ring' (A) to wheel centre at an angle with the arrow pointing upwards towards the upper wheel bolt position.
  2. Lightly squeeze the retention clips and insert into wheel aperture.
5

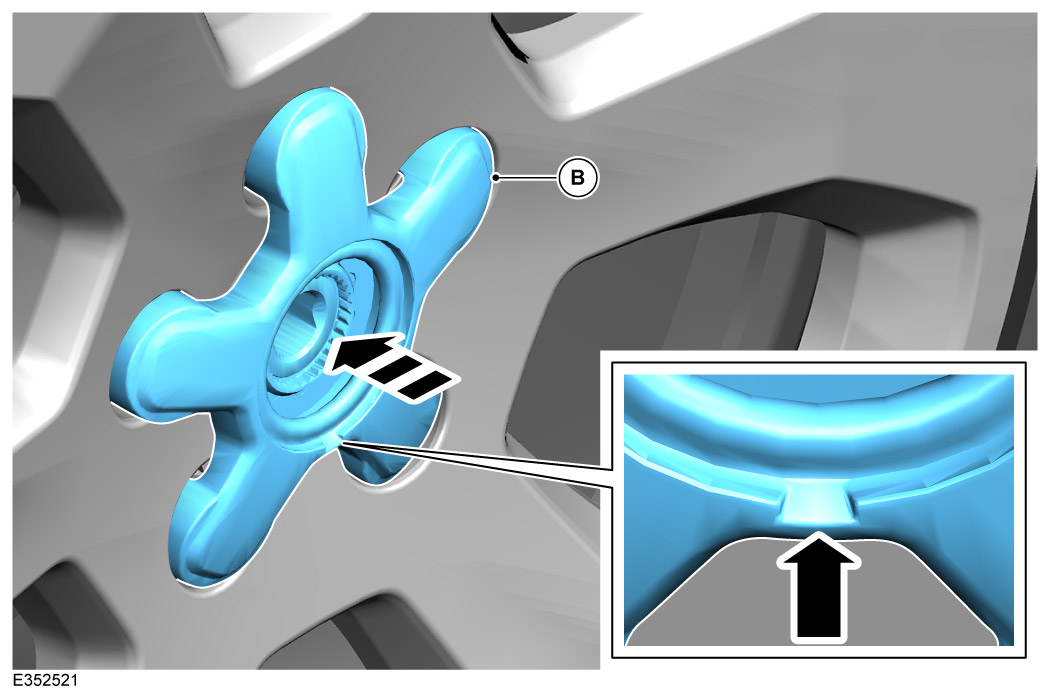

Install 'Module' (B) to the spare wheel making sure the cut out is facing downward.

6
CAUTION
  • Do not use impact wrench and do not overtighten.
NOTE
  • Mark the adapter with a pen to make sure 1/4 turn of the hex key.

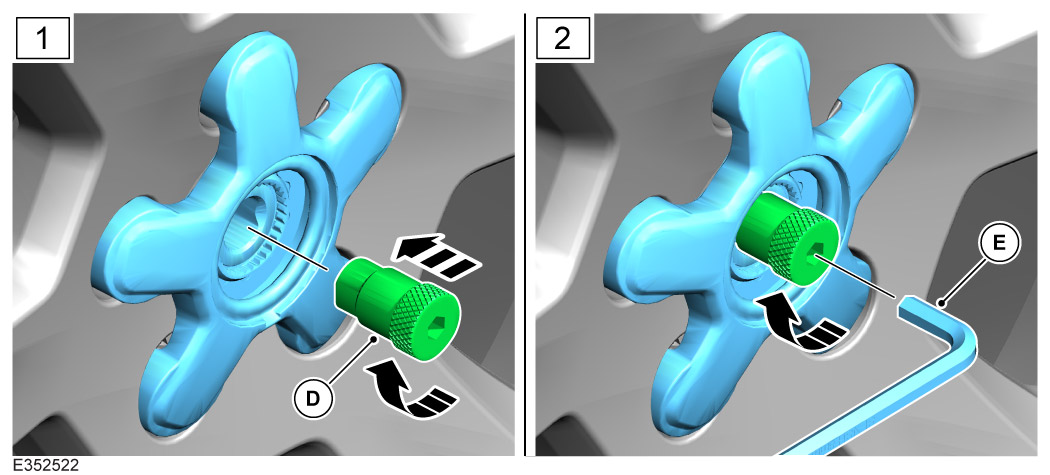

Secure the module to the spare wheel.

  1. Install 'Adapter' (D) into the module and hand tighten clockwise.
  2. Using the 'Hex Key' (E) insert it into the adapter and do a final secure with a 1/4 clockwise turn.
7
NOTE
  • Inspect the lock is secure (does not rattle) prior to driving the vehicle.

Lock the module to the spare wheel.

  1. Insert the 'Cylinder Lock Barrel' (C) into the module and turn the key 1/4 clockwise to lock.
  2. Make sure to remove the key.
8
NOTE
  • Make sure logo on centre cap badge is horizontal to cut out on module.

Install the centre cap badge to the module.

© Land Rover 2016
