LAND ROVER

DEFENDER

FRONT TREADPLATES

VPLES0576PVJ / VPLES0596LAA / VPLES0575PVJ / VPLES0595LAA / LR131470 / LR131471 / LR131463 / LR131474 / LR131475 / LR131466 / LR131467 / LR141462 / LR131462 / LR131470 / LR131463 / LR131471

FITTING INSTRUCTION

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to ordering and installation to see if this accessory is applicable to your variant of vehicle. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

Accessory Kits Required	Vehicle Variant	Part Number
Illuminated Front Treadplate: Lunar - Left Side	Defender 110/130	LR141462
Illuminated Front Treadplate: Lunar - Right Side	Defender 110/130	LR131470
Illuminated Front Treadplate: Ebony - Left Side	Defender 110/130	LR131463
Illuminated Front Treadplate: Ebony - Right Side	Defender 110/130	LR131471
Illuminated Front Treadplate: Lunar - Left Side	Defender 90	LR131466
Illuminated Front Treadplate: Lunar - Right Side	Defender 90	LR131474
Illuminated Front Treadplate: Ebony - Left Side	Defender 90	LR131467
Illuminated Front Treadplate: Ebony - Right Side	Defender 90	LR131475
Personalised Front Treadplates: Ebony	Defender 110/130	VPLES0576PVJ
Personalised Front Treadplates: Lunar	Defender 110/130	VPLES0596LAA
Personalised Front Treadplates: Ebony	Defender 90	VPLES0575PVJ
Personalised Front Treadplates: Lunar	Defender 90	VPLES0595LAA
Illuminated Front Treadplate: Lunar - Left Side	Defender 110 OCTA	LR131462
Illuminated Front Treadplate: Lunar - Right Side	Defender 110 OCTA	LR131470
Illuminated Front Treadplate: Ebony - Left Side	Defender 110 OCTA	LR131463
Illuminated Front Treadplate: Ebony - Right Side	Defender 110 OCTA	LR131471

Warnings / Cautions / Notes

CAUTION

Protect the surrounding paintwork to avoid damage.

NOTE

This procedure contains illustrations for the left side components, right side components are similar.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

NOTE

Complete step for Defender 90.

For Defender 90 only, remove the rear quarter trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

For additional information, please refer to the official Workshop Manual. Rear Quarter Trim Panel - [+] 90 (501-05)

NOTE

Complete step for Defender 110/130.

For Defender 110/130 only, remove the B-pillar lower trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

For additional information, please refer to the official Workshop Manual. B-Pillar Lower Trim Panel (501-05)

CAUTION

Use a suitable trim tool.

Remove the front treadplate.

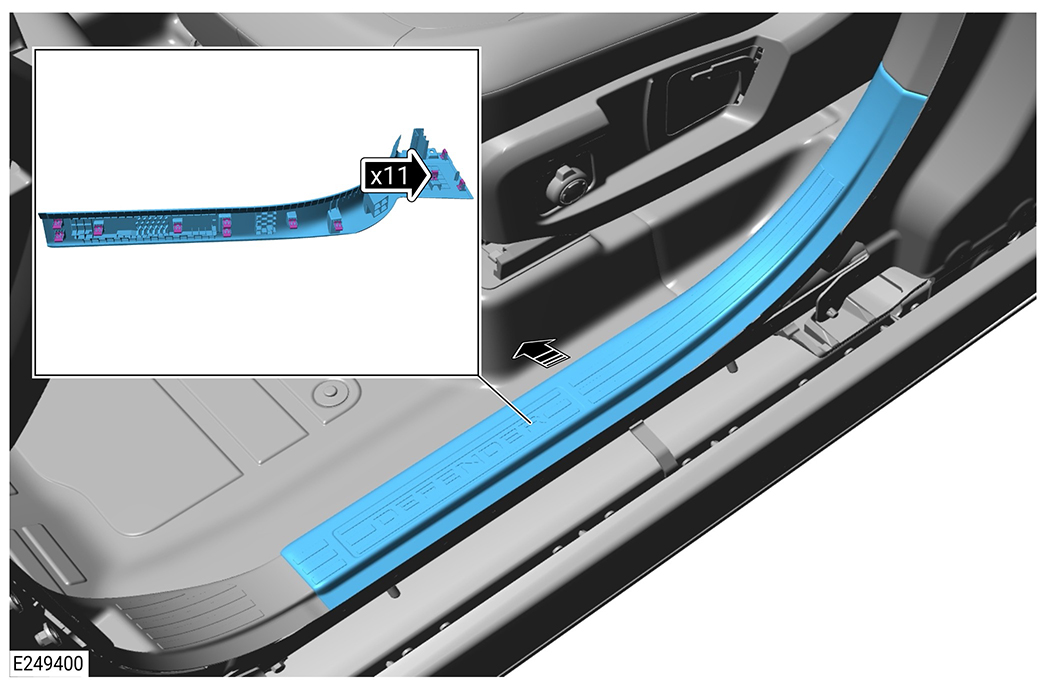

Release from the 11 clips.
Remove the front treadplate trim panel.

Install the personalised or illuminated front treadplates as required.

Connect the electrical connector. The connector is located underneath the treadplate 'DEFENDER' logo.
Install the 11 clips.
Install the front treadplate trim panel.

NOTE

Complete step for Defender 110/130.

For Defender 110/130 only, install the B-pillar lower trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

For additional information, please refer to the official Workshop Manual. B-Pillar Lower Trim Panel (501-05)

NOTE

Complete step for Defender 90.

For Defender 90 only, install the rear quarter trim panel. Ask your Jaguar Land Rover Retailer for a copy of this instruction if you do not have access to TOPIx.

For additional information, please refer to the official Workshop Manual. Rear Quarter Trim Panel - [+] 90 (501-05)
