LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

DEFENDER

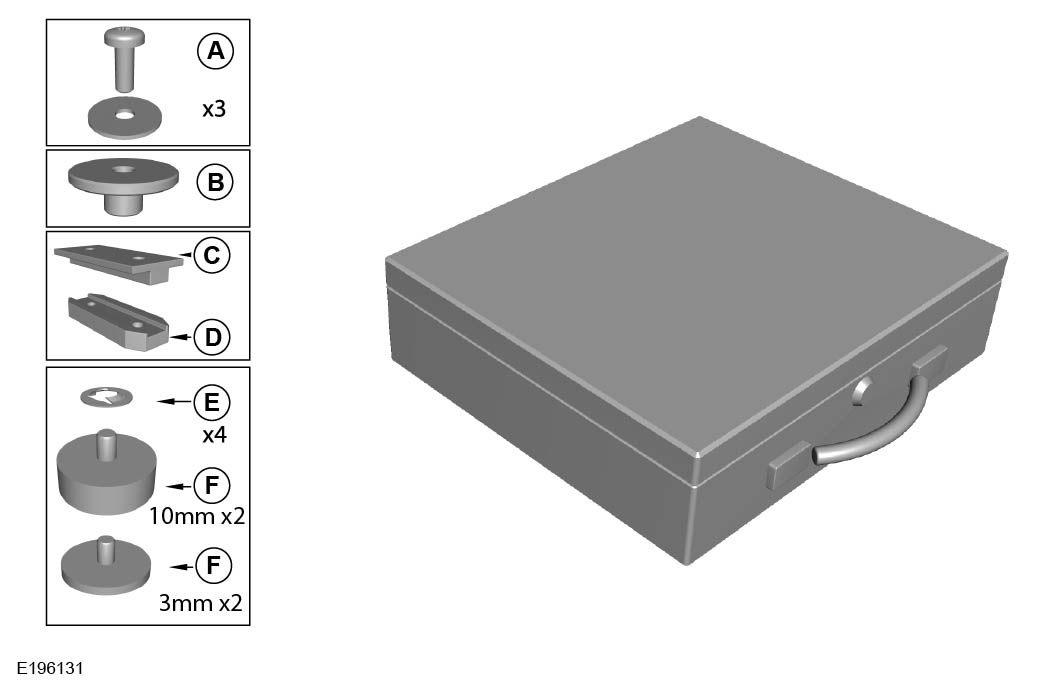

SMALL SECURITY BOX

VPLVS0183

FITTING INSTRUCTION

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTE

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
The small security box can only be used if the vehicle is equipped with the loadspace rails.
The small security box is for 5 seat vehicles only.

1

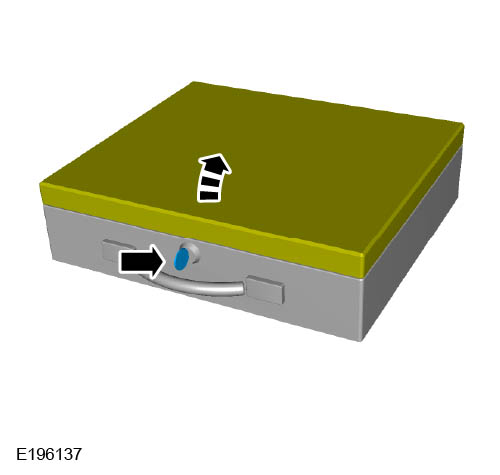

Unlock and open the small security box.

2

NOTE

The supplied 10 mm feet are not required.

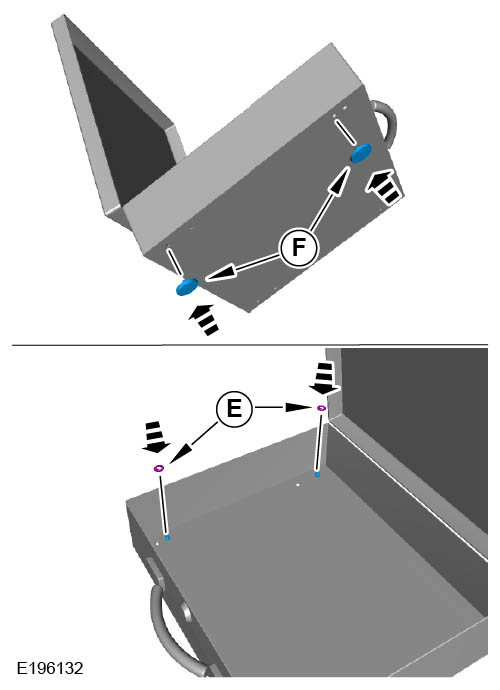

Install the 3 mm feet (F) using the supplied clips (E) as illustrated.

3

NOTE

Only tighten the bolts finger tight at this stage.

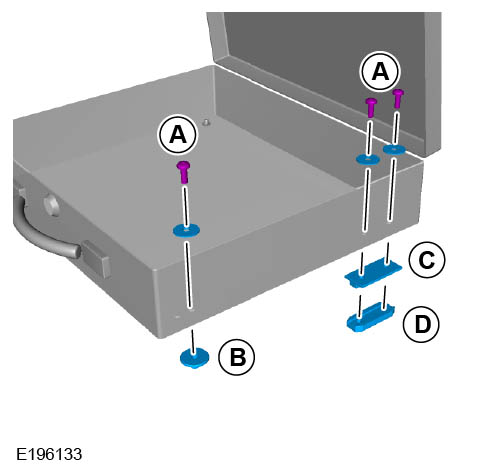

Install the clamp and the slide pin as illustrated.

4

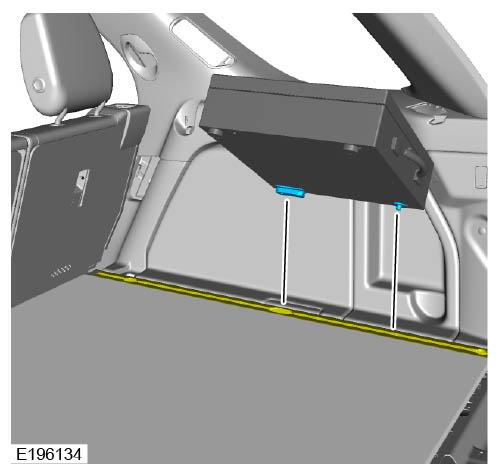

Locate the small security box in the loadspace rail slot.

5

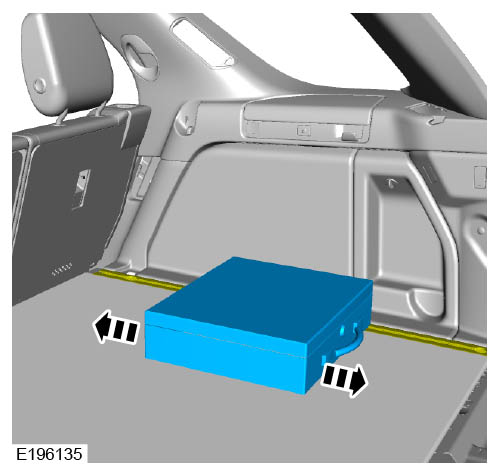

Adjust the position of the small security box as required.

6

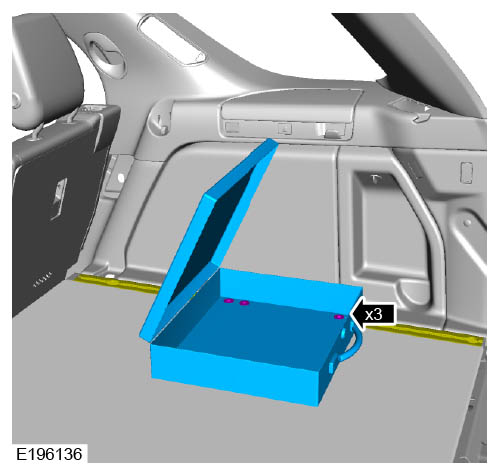

Tighten the bolts.

Torque: 10 Nm
