LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

DEFENDER

SKI BAG

VPLGS0166

FITTING INSTRUCTION

WARNING
  • Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
NOTE
  • It is the responsibility of the vehicle owner to make sure that the ski bag is properly restrained within the vehicle before driving.
Fitting Instruction
NOTE

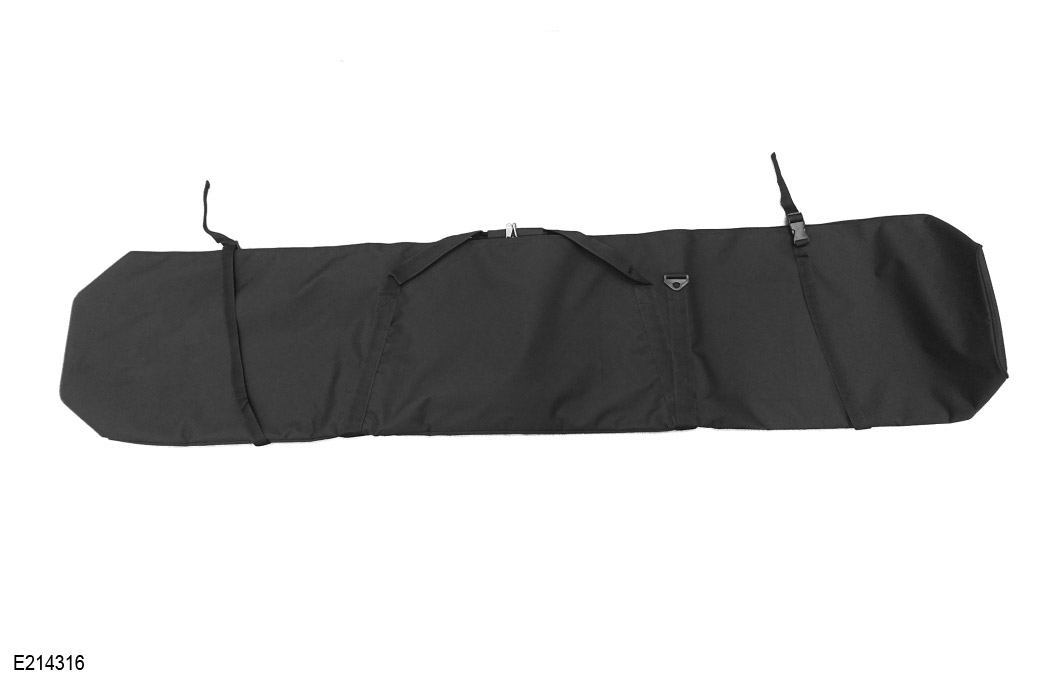

  • The ski bag will carry up to 2 pairs of skis and poles with a maximum length of 180 cm.
1

Open the tailgate.

2

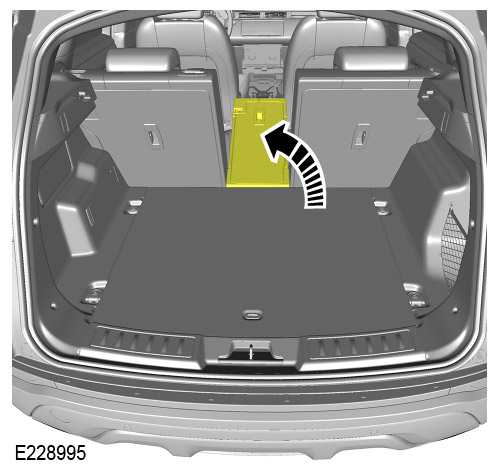

Fold down the center part of the second row seats as illustrated.

3

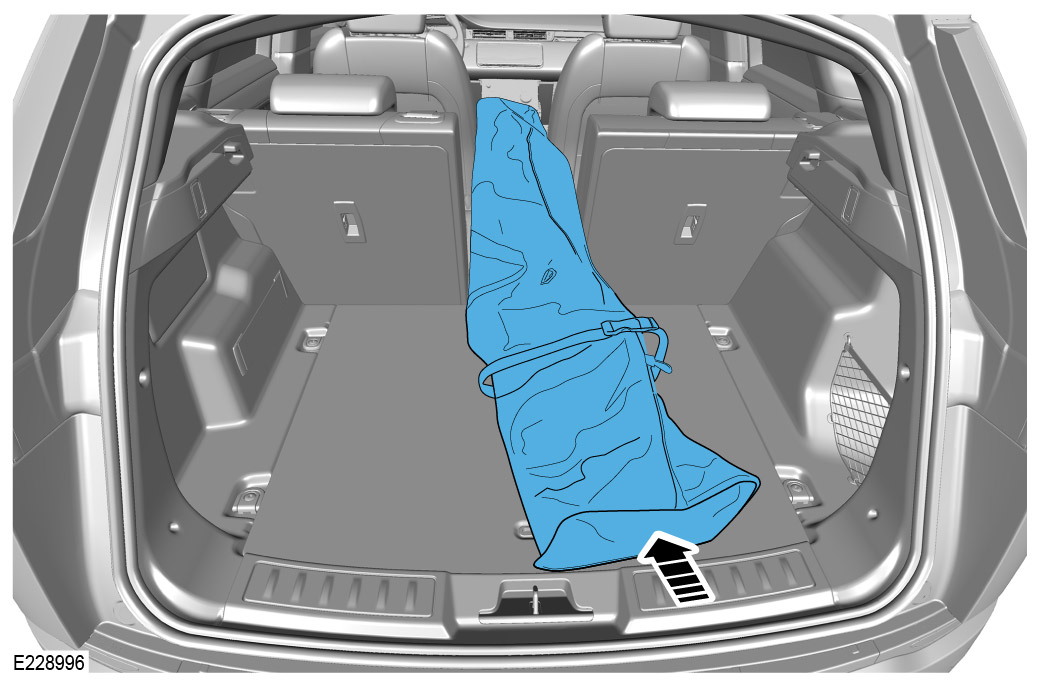

Install the ski bag into the loadspace and over the folded center second row seat as illustrated. The end of the ski bag may need to be located between the front row seats in order to accommodate the ski bag in the vehicle.

4

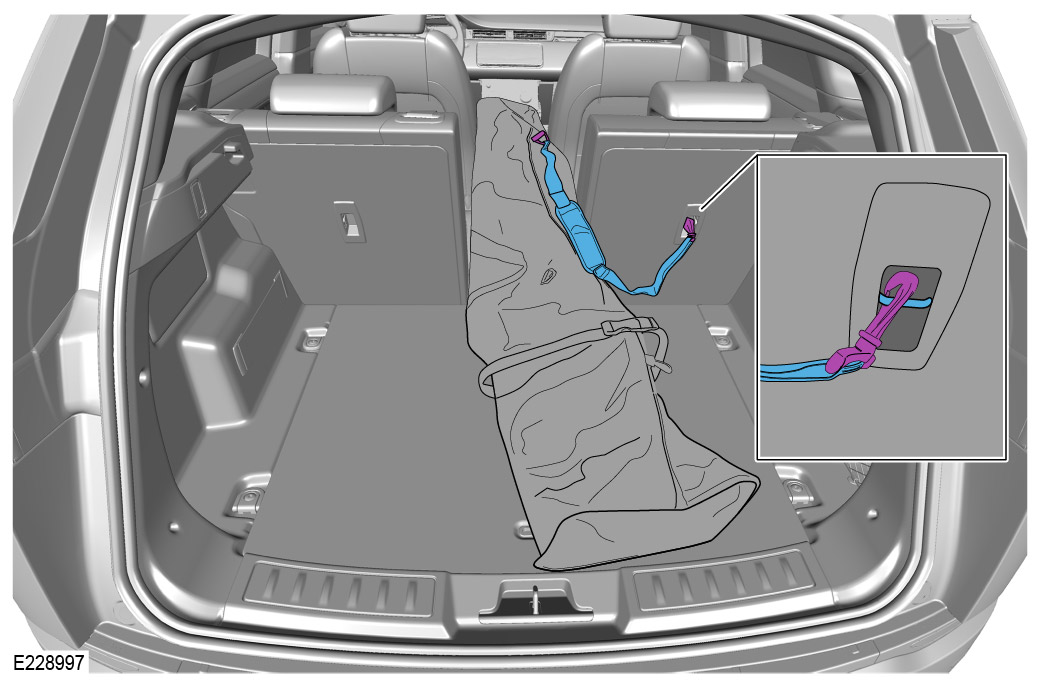

The ski bag can be secured to the vehicle using the shoulder strap as illustrated.

  • Connect one end of the shoulder strap to the fixing point at the rear of the left or right second row seat.
  • Connect the other end of the shoulder strap to the shoulder strap fastening loop on the ski bag.
5

Close the tailgate.

© Land Rover 2016
