LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

DEFENDER

LIFT AND LOAD SYSTEM

VPLVR0096

FITTING INSTRUCTION

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.
The hoist must only be installed to the ceiling by a professional.

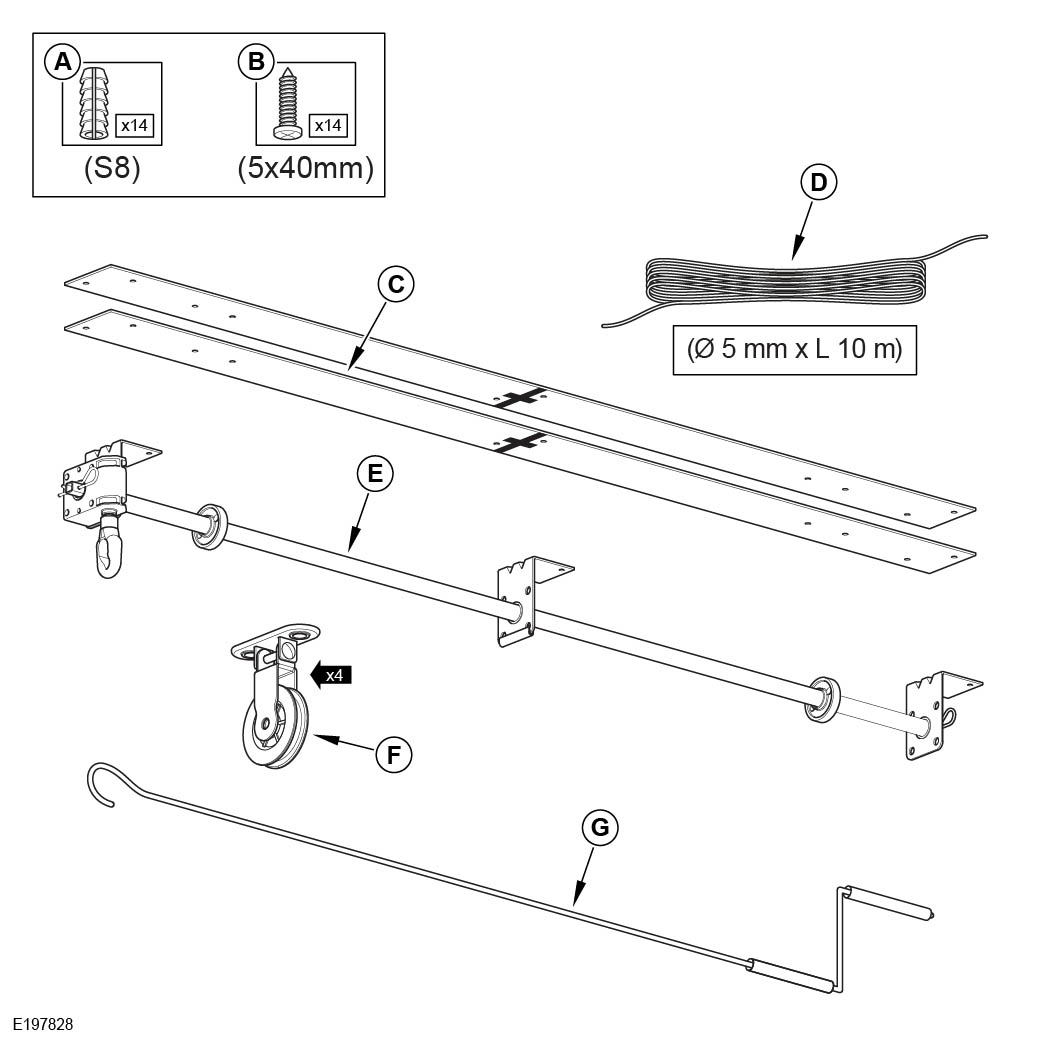

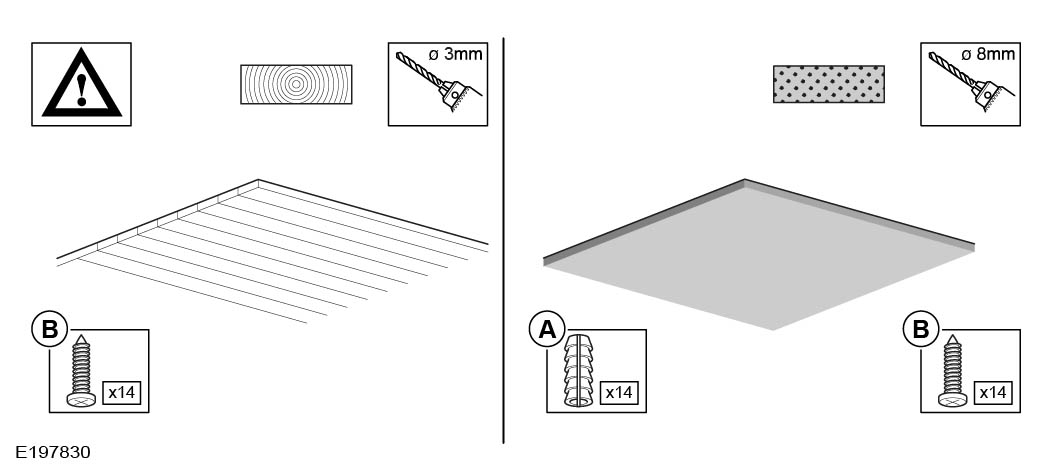

Before the lift and load system is installed, the ceiling material must be checked to make sure that it is suitable and strong enough to support the lift and load system.

NOTE

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Weight of the lift and load system is 3.4 kg.

WARNING

Maximum load 100 kg.

1

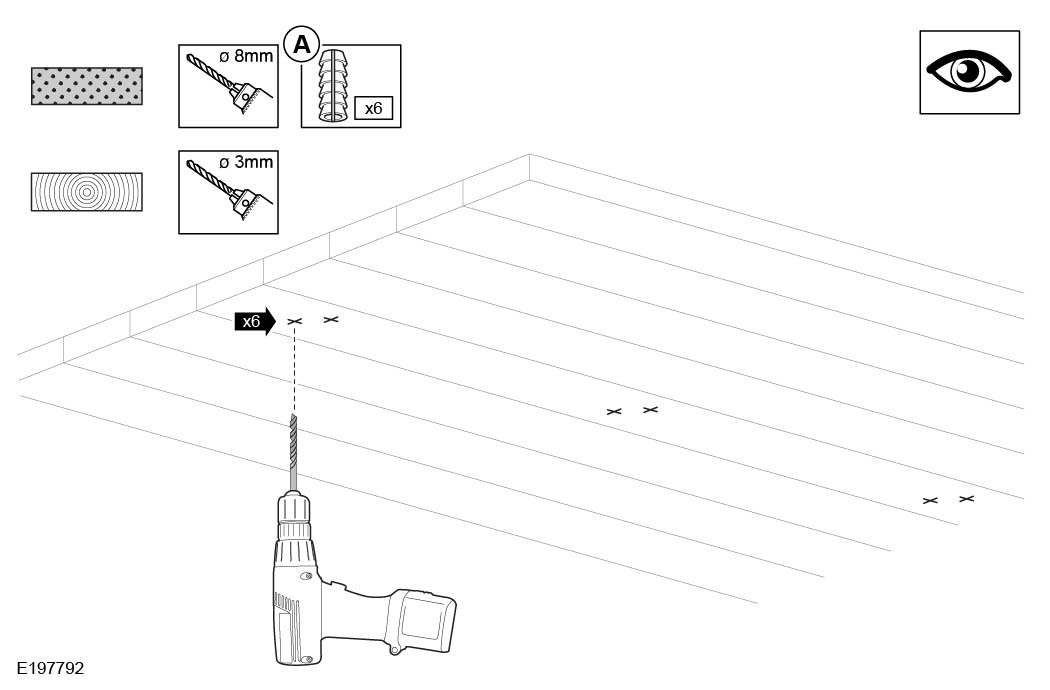

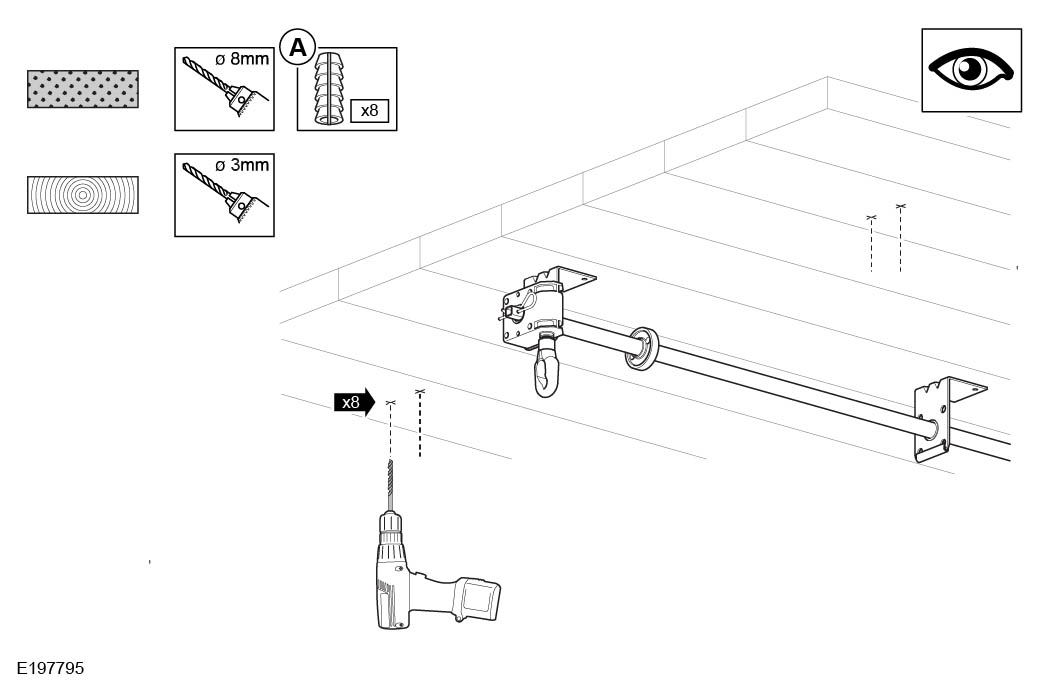

Drill the mounting holes for the lift and load system.

2

NOTE

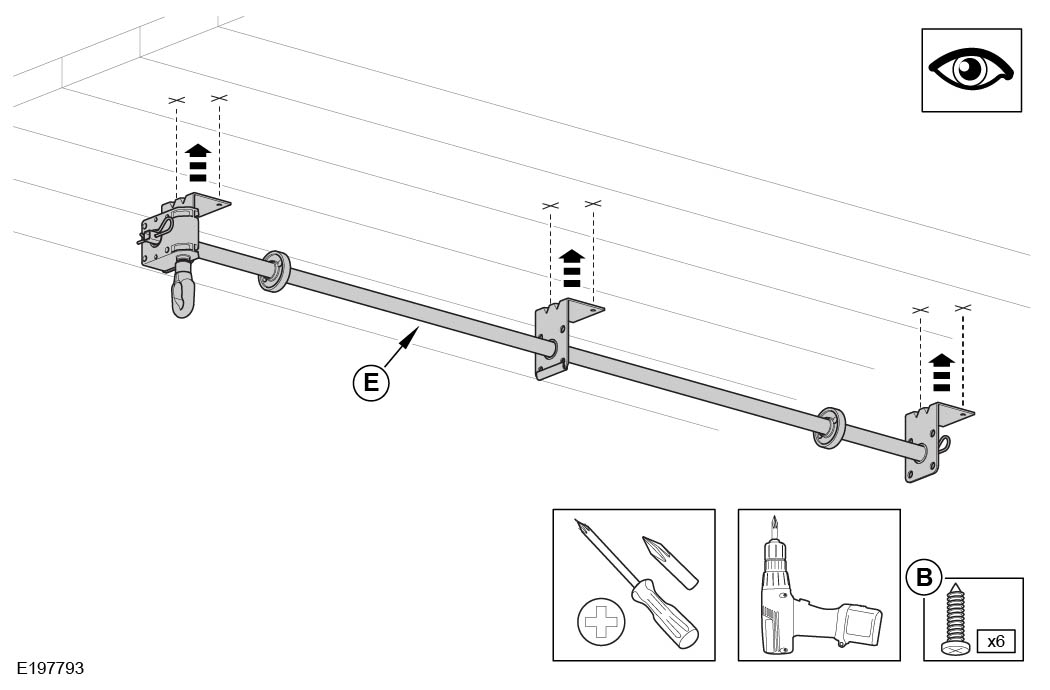

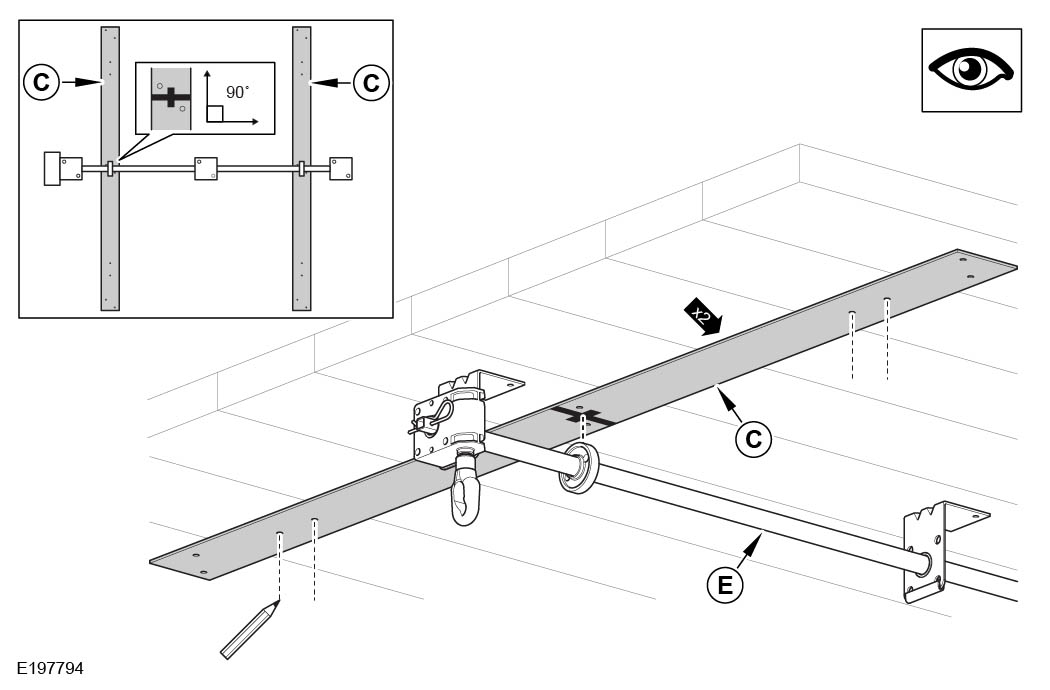

Mark through the 6 diagonal holes in the template for the holes to mount part E.

3

4

5

NOTE

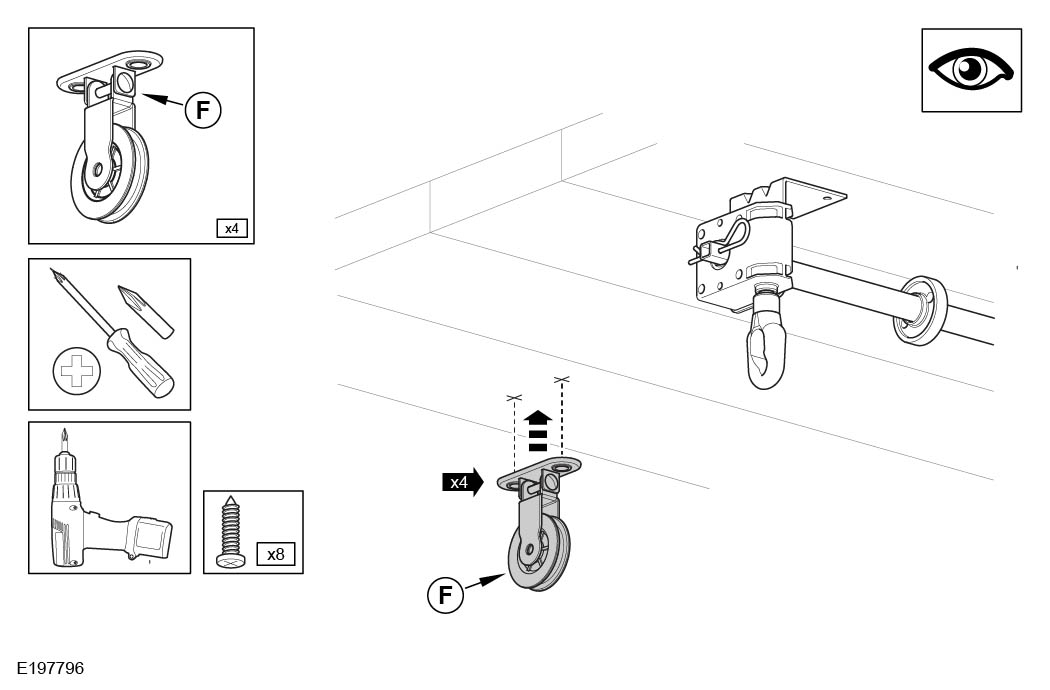

Mark through the 4 holes in the template for the holes to mount parts F.

6

7

8

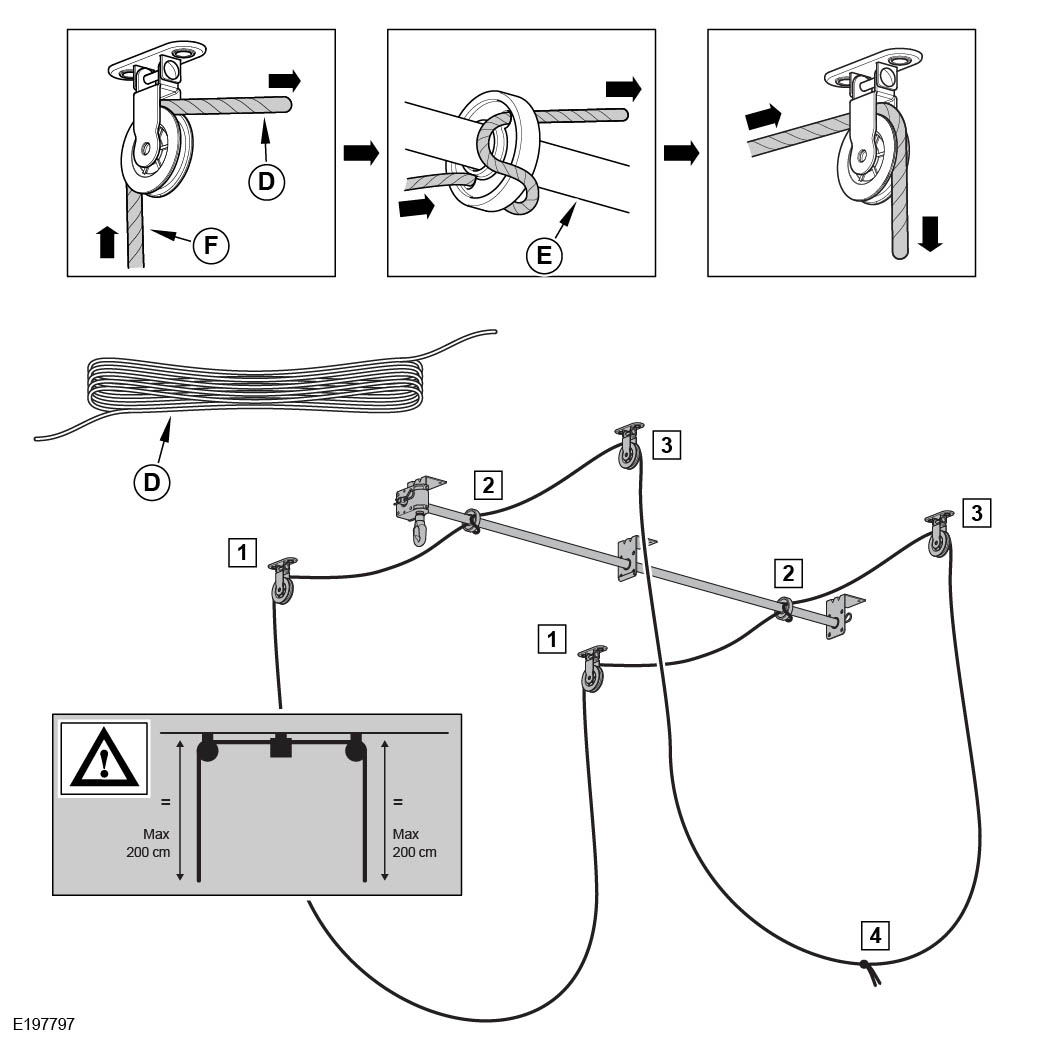

Thread the rope through the pulley.
Thread the rope through the lifting wheel eyes.

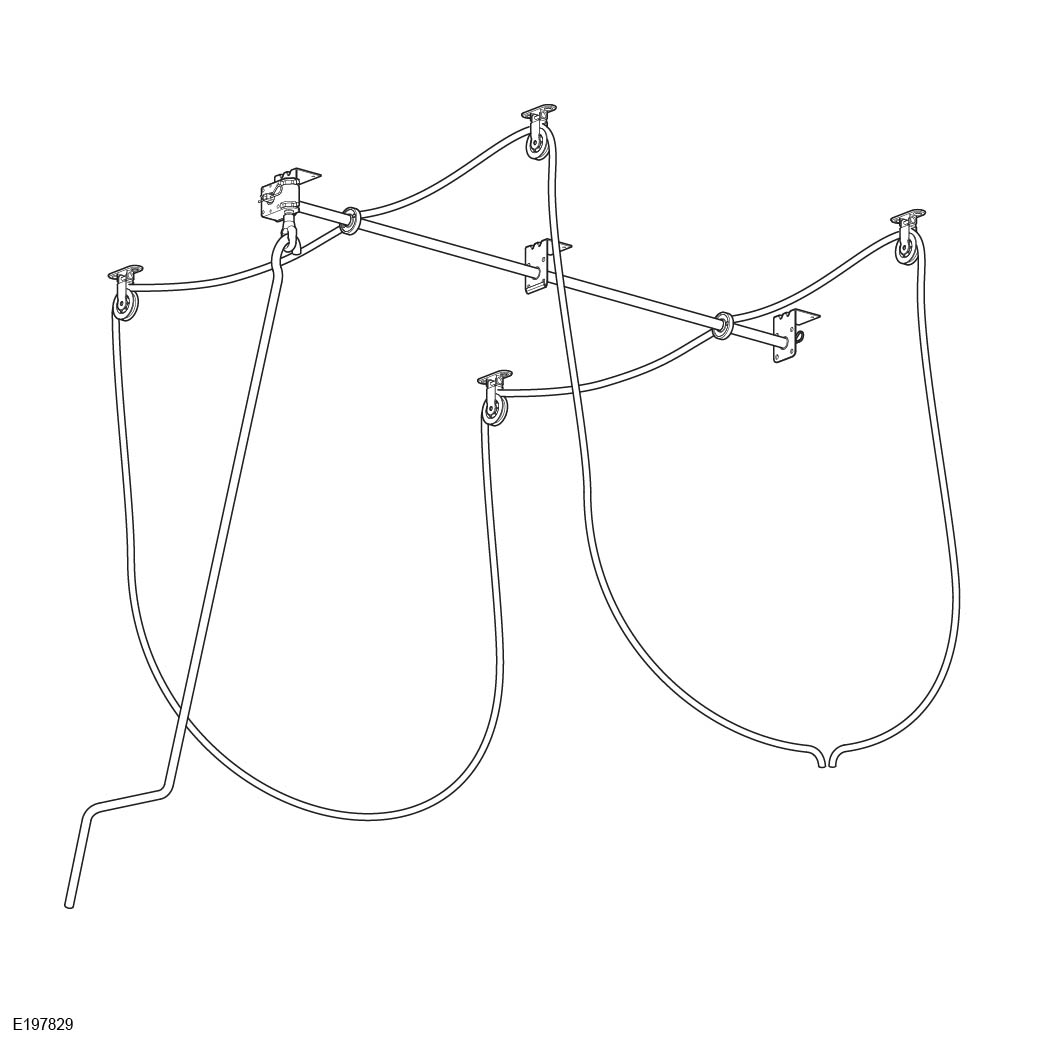

Thread the rope through the pulley.

9

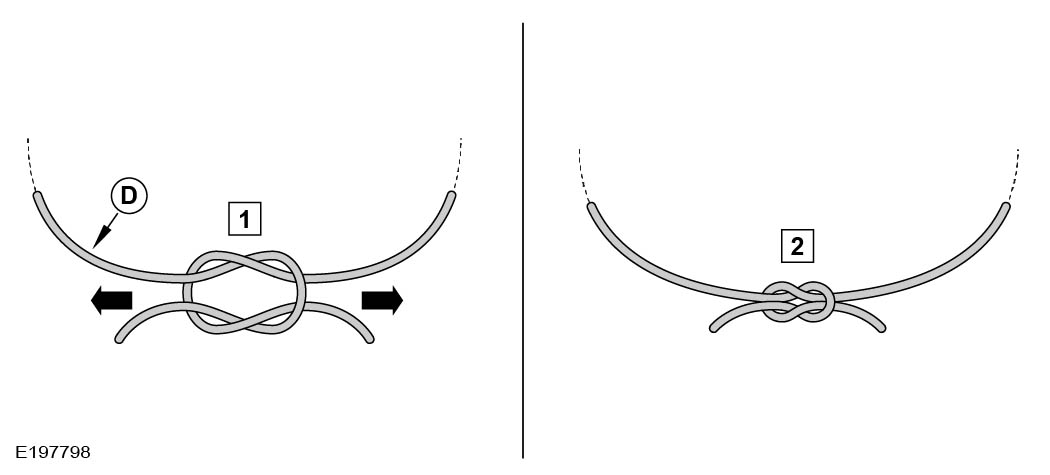

Tie the 2 rope tethers together with a square knot.
Pull the knot tight.

10

WARNING

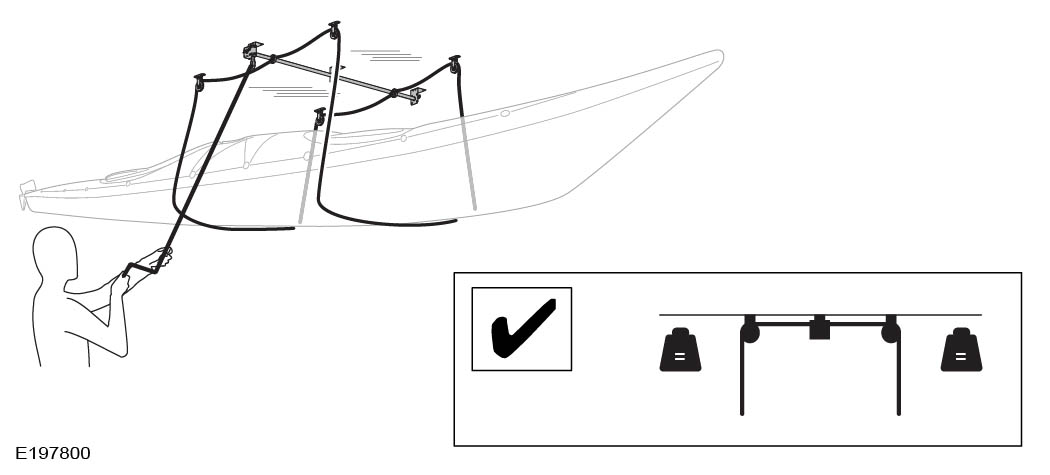

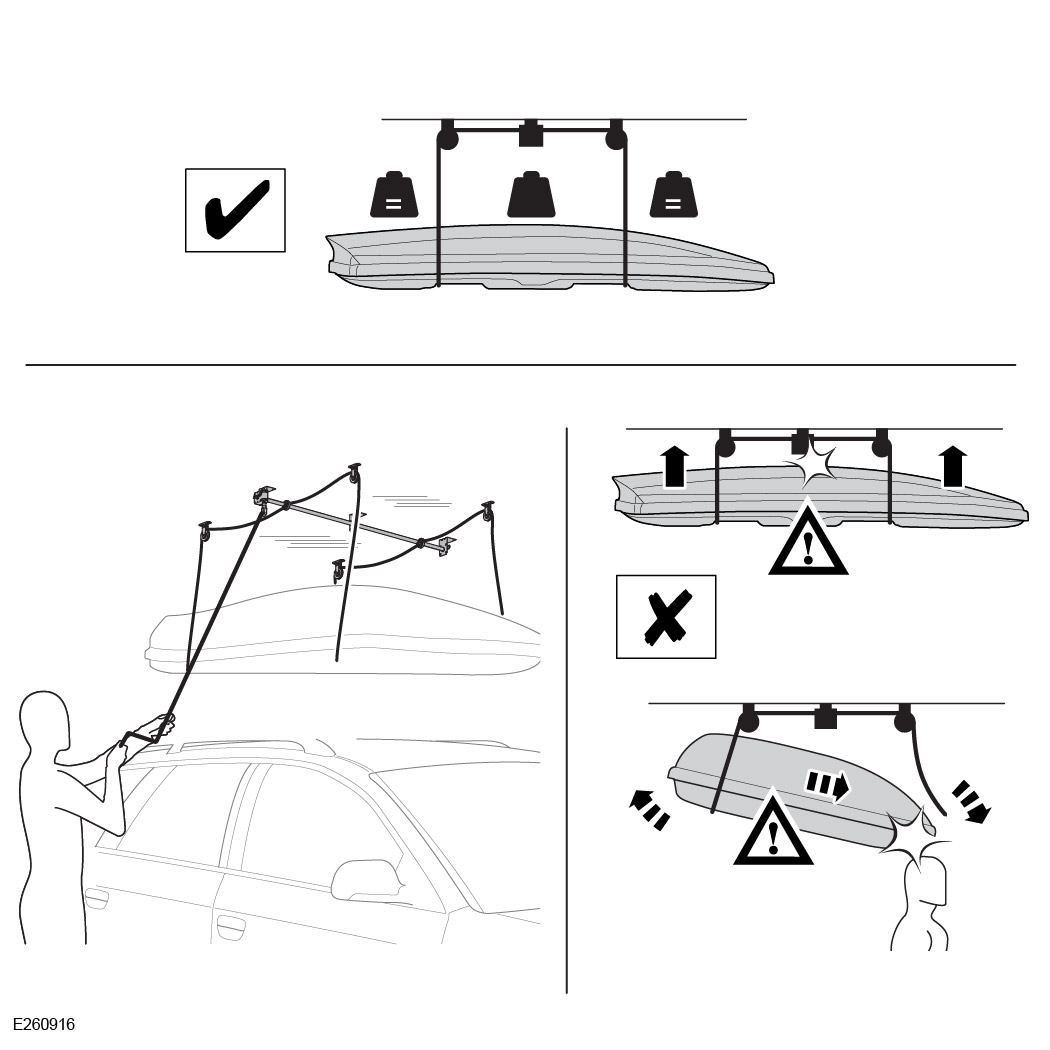

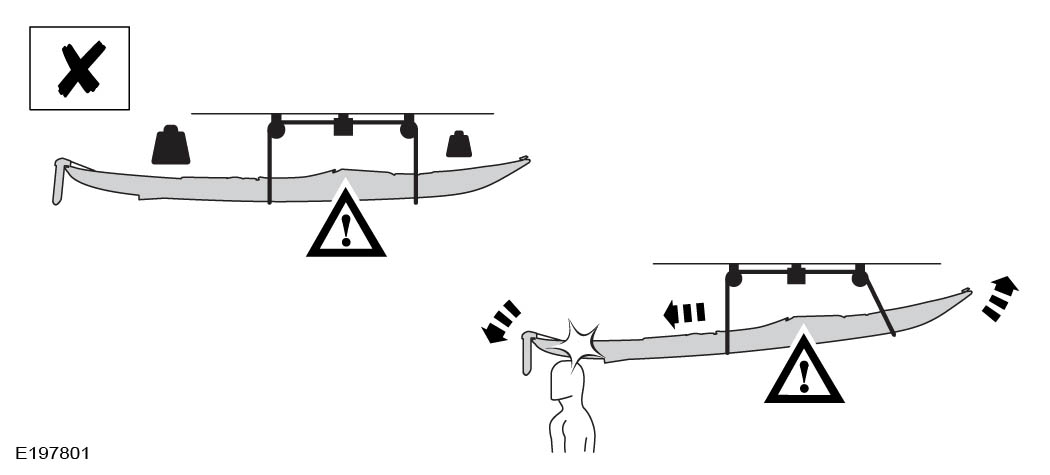

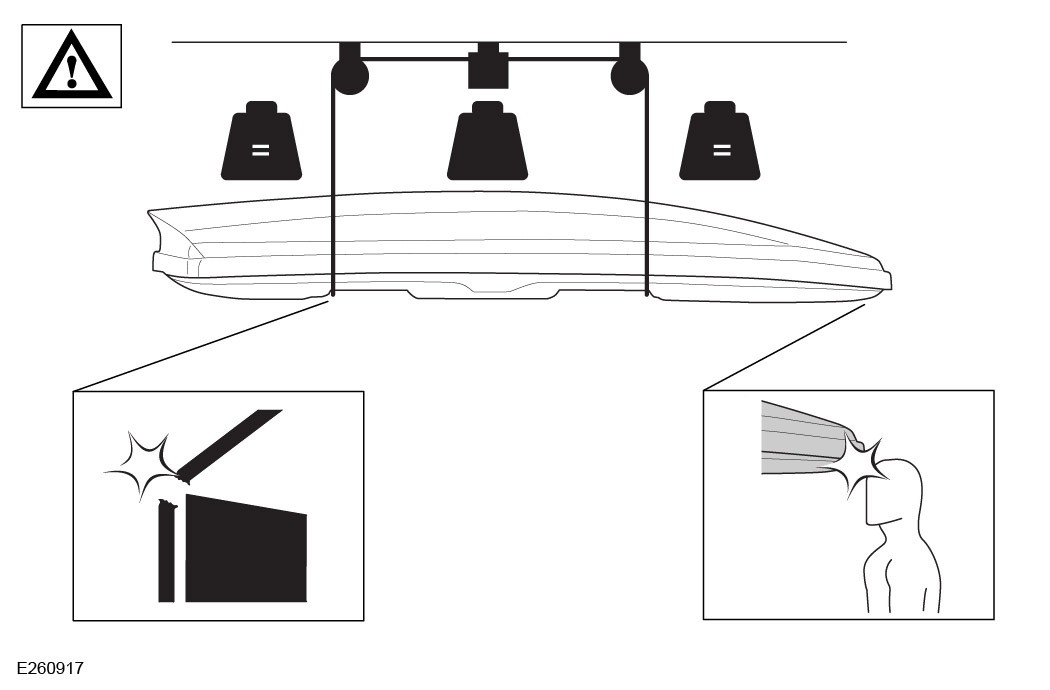

Keep loads even when loading items on the lift and load system.

11

12
