LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

DISCOVERY

FRONT GRILLE

LR142424

FITTING INSTRUCTION

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

1

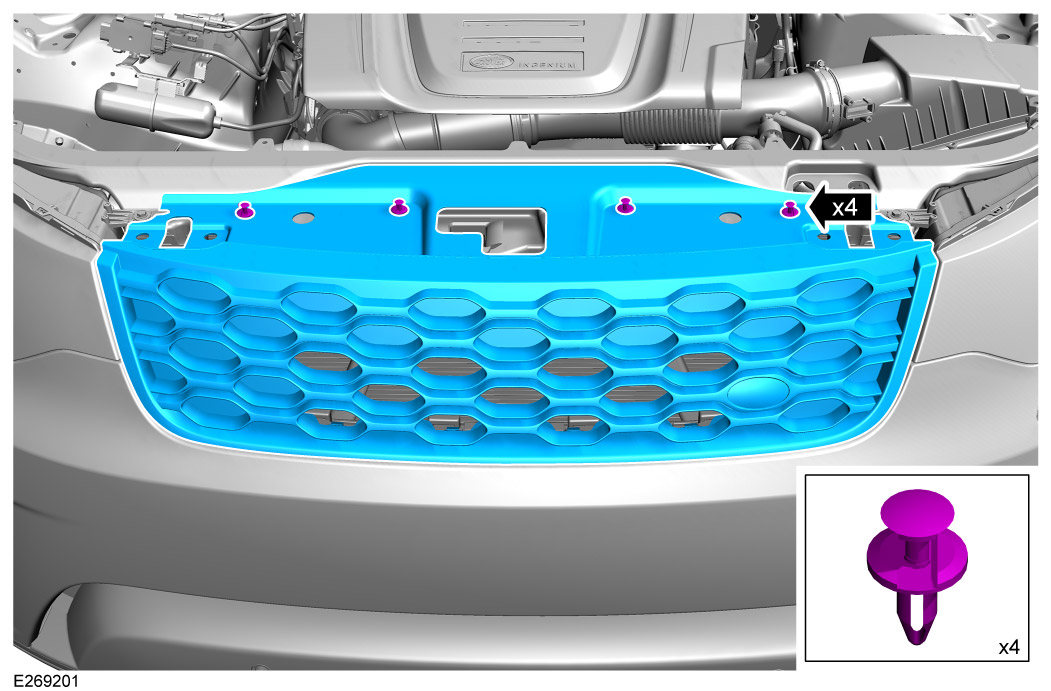

Use a suitable tool to remove the (x4) fasteners.

2

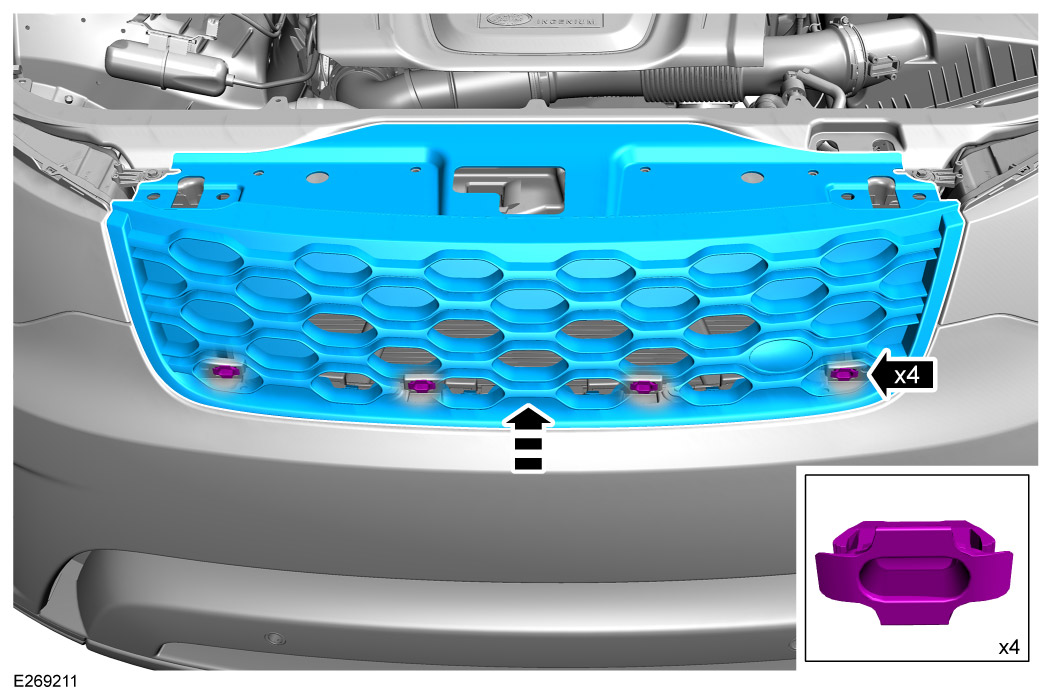

Using both hands, grip grille on the bottom and pull outwards from the vehicle to release the grille from (x4) fixing points.

1

Line up the new grille with the (x4) fixing points and click back into place.

2

Install (x4) fasteners.
