LAND ROVER

DISCOVERY

WARNING

Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

WARNING

Third row seating must not be used with the full height loadspace partition installed.

Open the tailgate.

Remove the luggage compartment blind.

NOTE

Fully lower the rear seats.

CAUTION

Remove the bolt and the luggage compartment D-loop.

Secure the loadspace partition bracket (B) and the previously removed D-loop with the bolt (C).

NOTE

With assistance carefully place the loadspace partition (A) in the vehicle's interior.

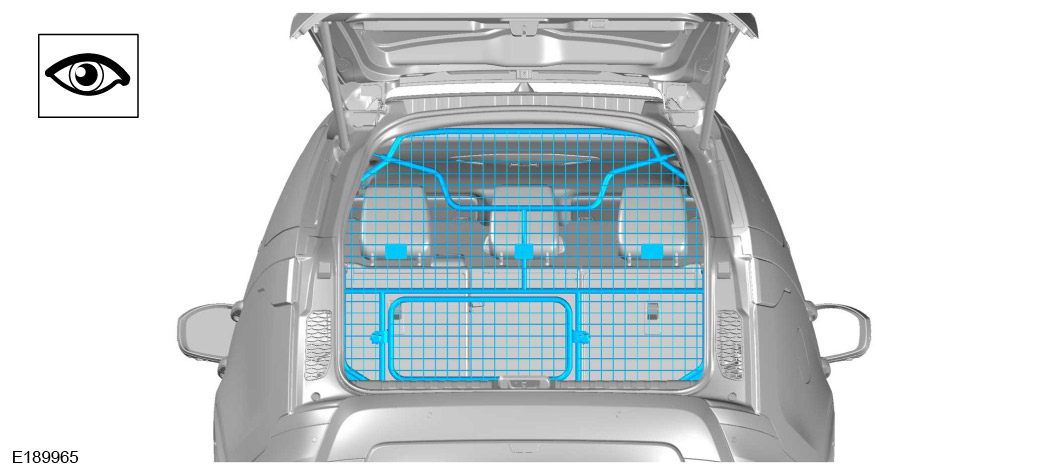

Secure the loadspace partition in the sequence illustrated.

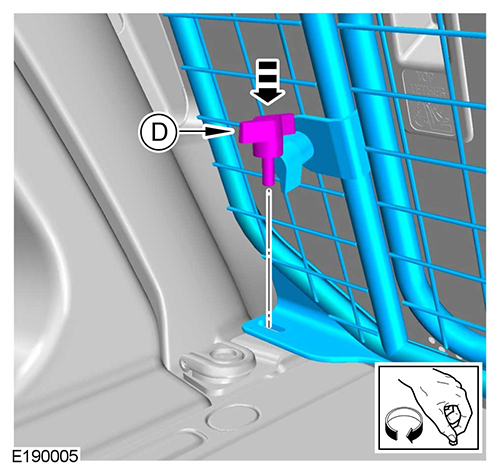

Secure the loadspace partition with the wing-bolt (D).

CAUTION

Fold up the rear seats.

Before proceeding to the next step, check the loadspace partition and all fasteners for a safe and correct fit.

Refit luggage compartment blind.

Close the tailgate.

After covering the indicated distance, recheck all wing-bolts if appropriately tightened.

To open the access door, follow the sequence shown.
