LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

RANGE ROVER SPORT

LOADSPACE MAT

VPLXS0672

FITTING INSTRUCTION

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to ordering and installation to make sure this accessory is applicable to your variant of vehicle. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

Kit Variants	Part Number
Rubber Loadspace Mat	VPLXS0672

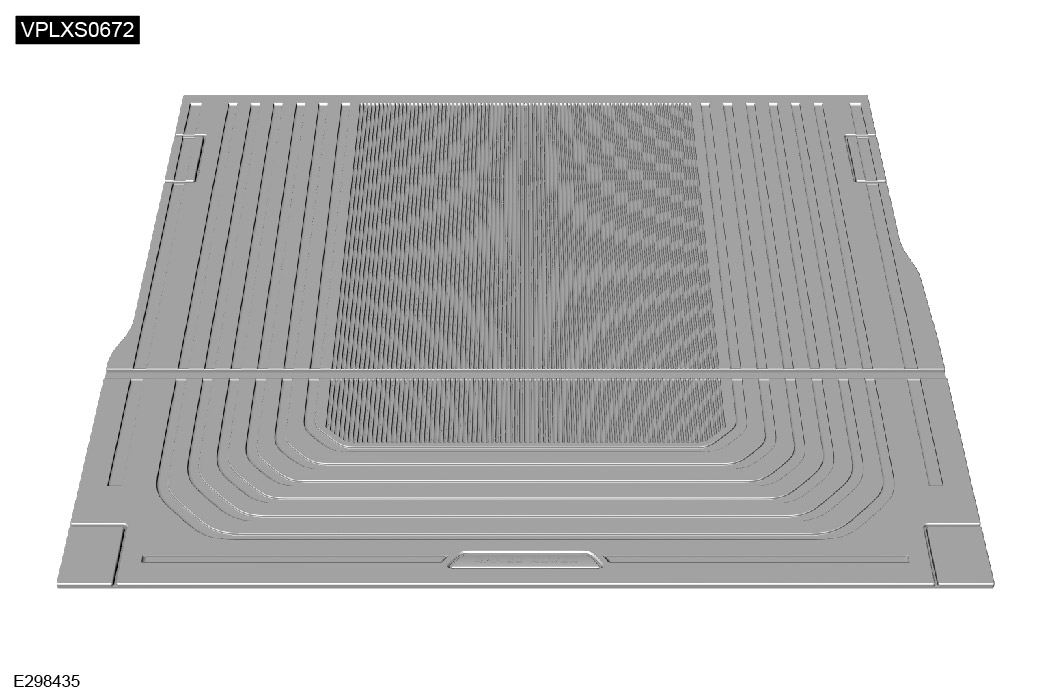

Loadspace Mat (Bill of Materials)

NOTE

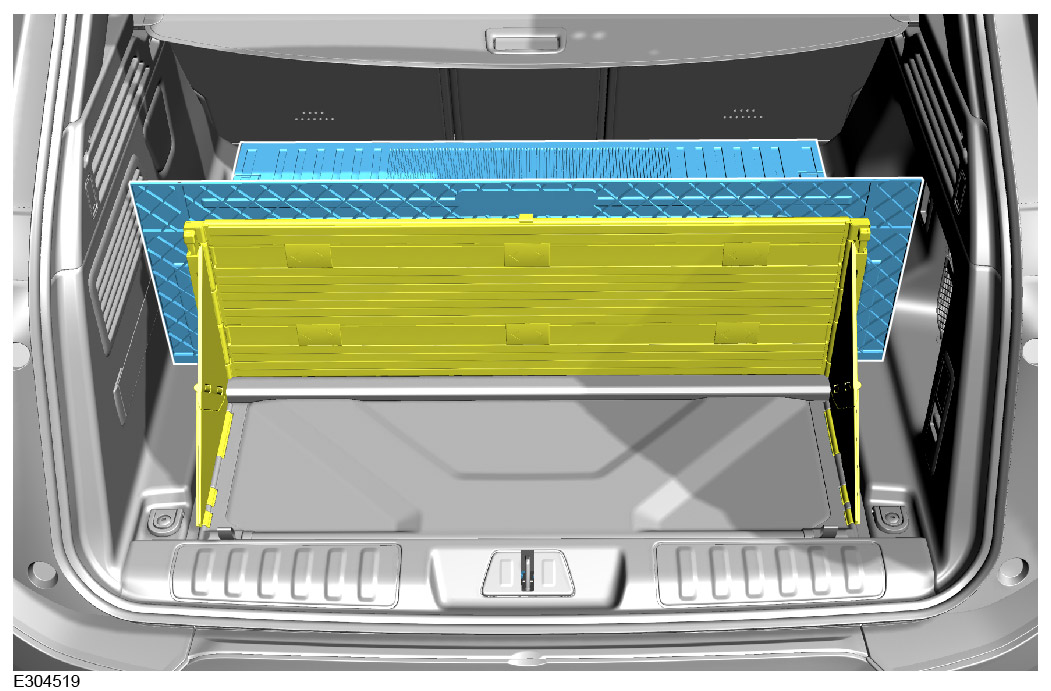

Rubber Loadspace Mat is compatible with the loadspace partition floor.

1

Open Tailgate.

2

NOTE

This step is only if you wish not to gain access to the D-loops underneath the loadspace mat when installed.

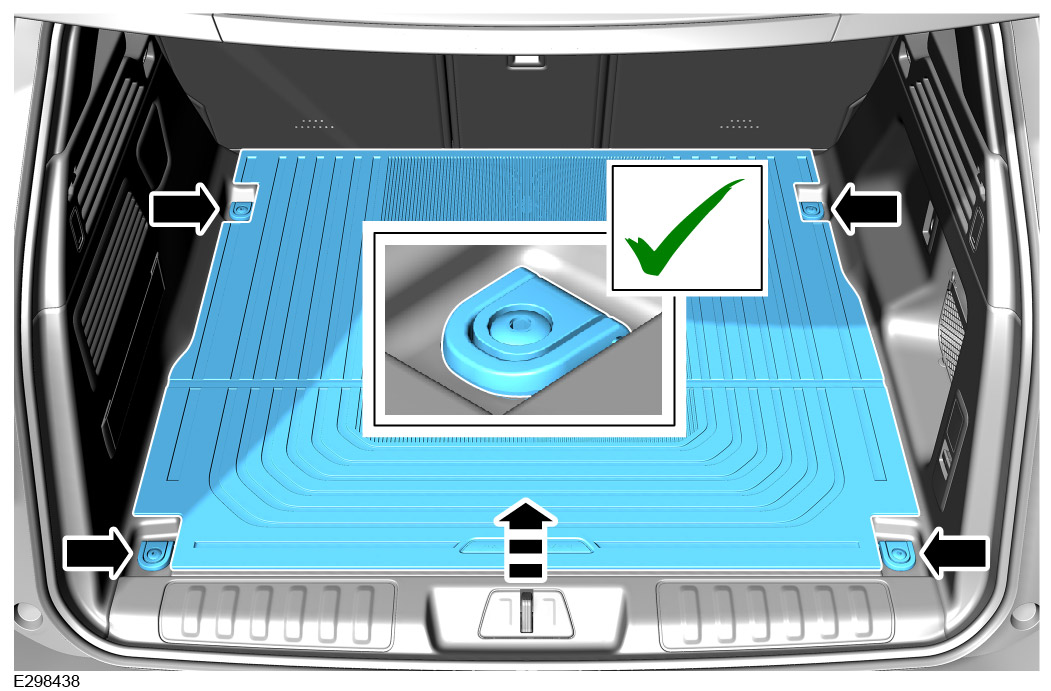

Install loadspace mat. Make sure it is laying correctly in the vehicle loadspace as illustrated.

3

NOTE

This step is only if you wish to gain access to the D-loops underneath the loadspace mat when installed.

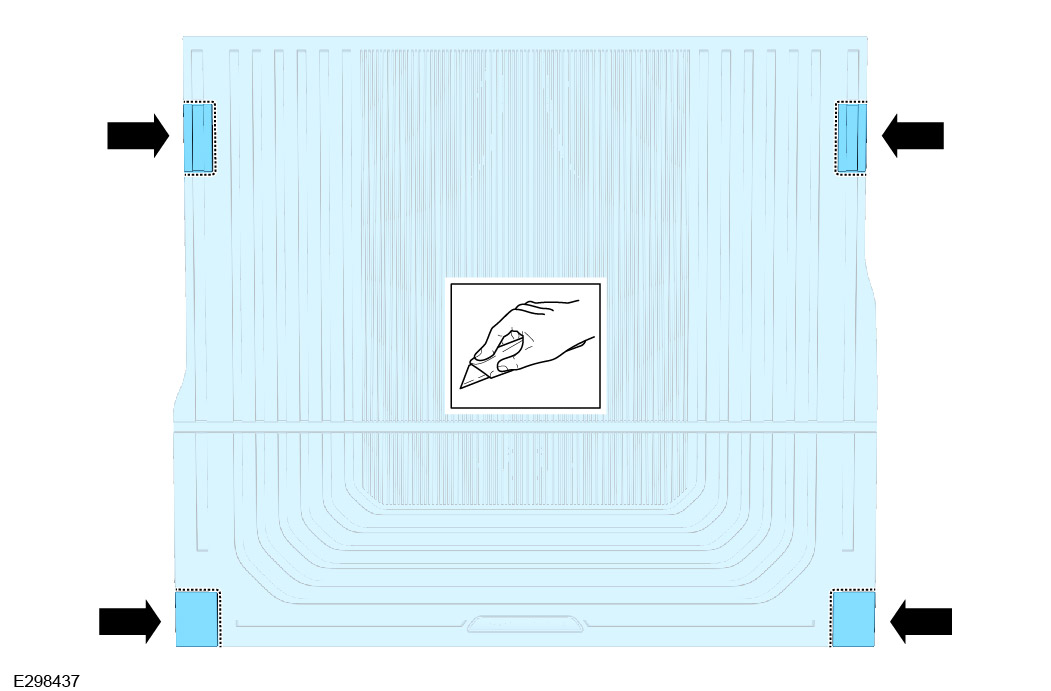

Cut loadspace mat where shown. This will allow access to the vehicles front and rear D-loops when installed.

4

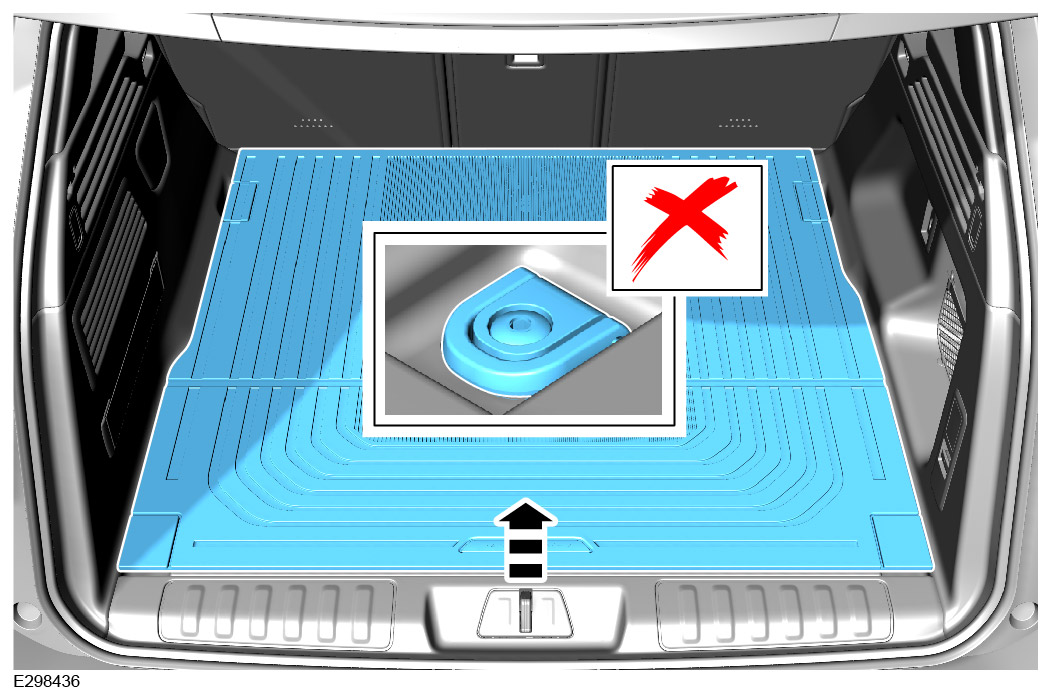

Install loadspace mat. Make sure it is laying correctly in the vehicle loadspace as illustrated and has access to the D-loops.
