LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

DEFENDER

WARNING TRIANGLE

VPLVC0060

FITTING INSTRUCTION

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTE

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

1

Open the tailgate.

2

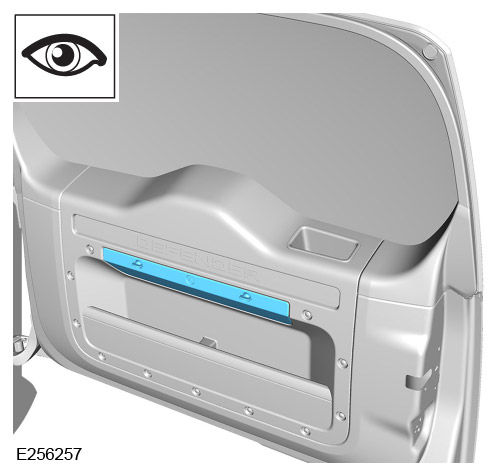

Identify the plastic storage compartment on the inside of the tailgate.

3

NOTE

Turn the screws outwards.

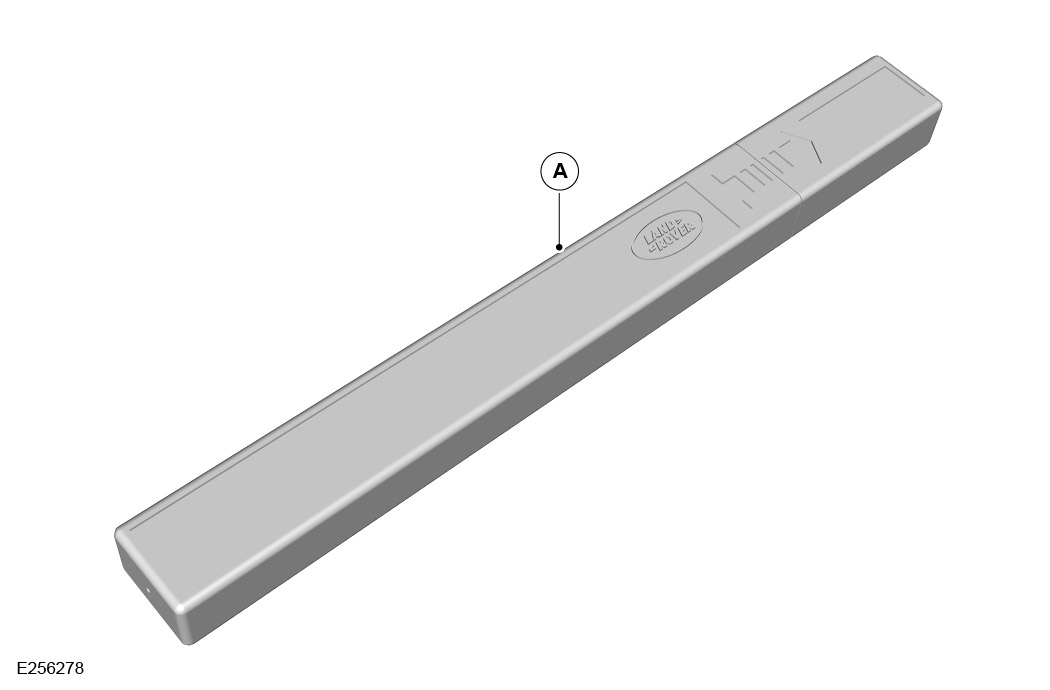

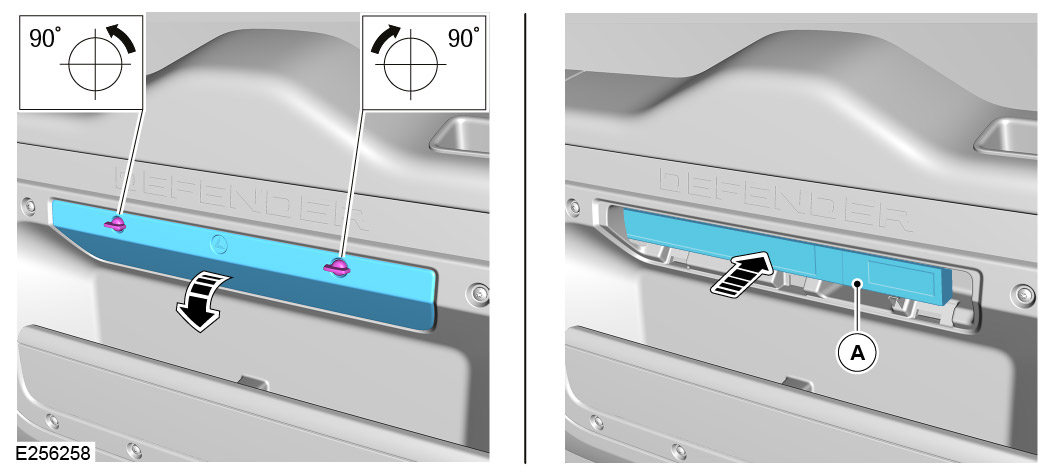

Remove the warning triangle storage compartment cover. Insert the warning triangle (A) into the housing as illustrated.

4

NOTE

Turn the screws inwards.

Replace the warning triangle storage compartment cover as illustrated.
