LAND ROVER

DEFENDER

WARNING

Accessories which are not correctly installed can be dangerous. Read the instructions carefully prior to installation. Comply with instructions at all times. If in doubt, contact your nearest approved retailer.

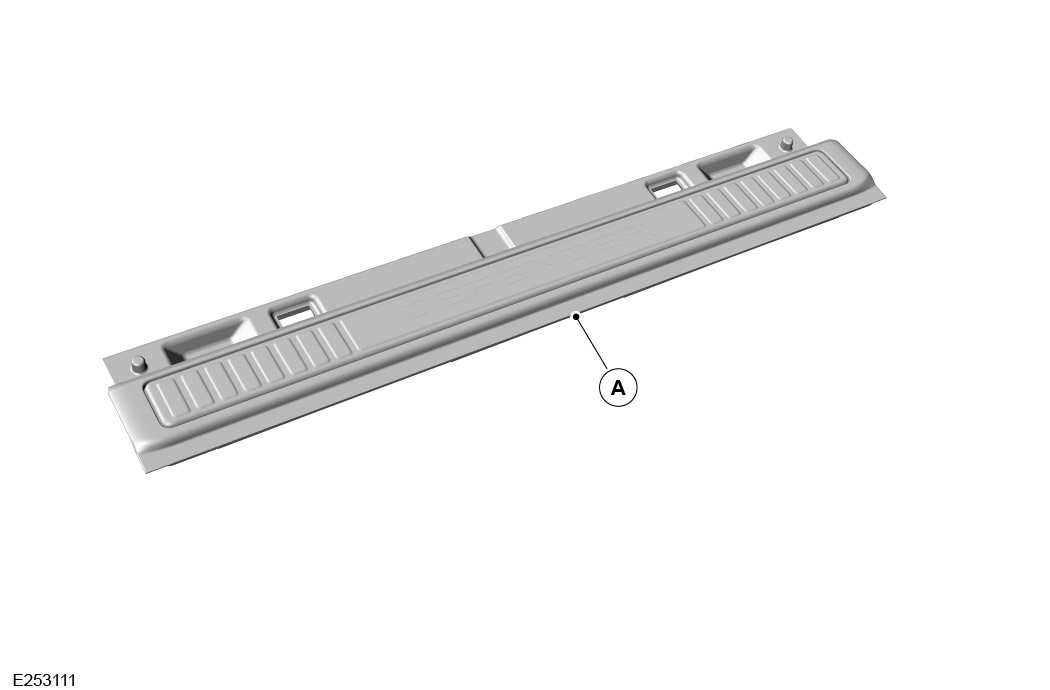

Accessory Kits Required	Part Number
Loadspace Treadplate - Ebony	VPLES0572
Loadspace Treadplate - Lunar	VPLES0594

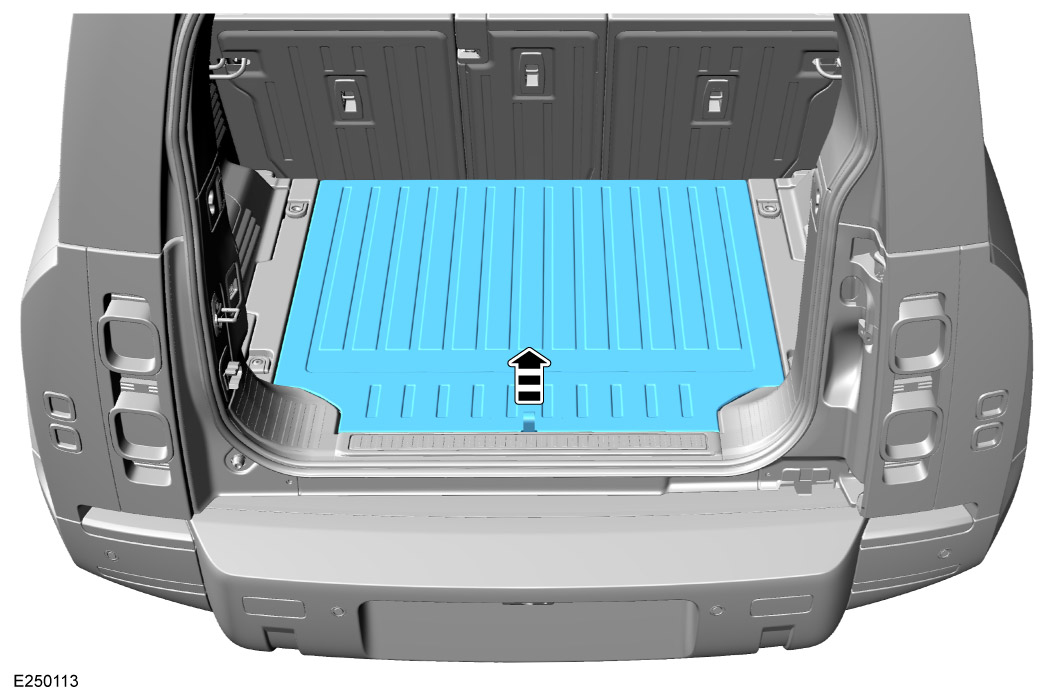

Remove the loadspace floor trim.

Use suitable tooling to remove the loadspace treadplate.

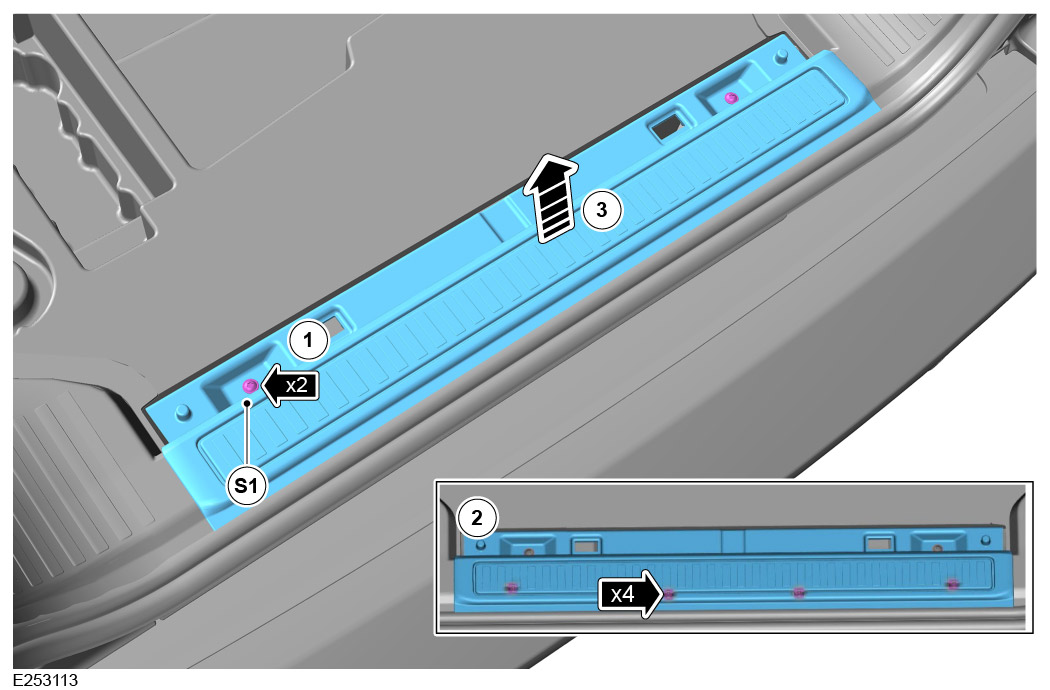

Remove the 2 fixings (S1) and retain.
Release the 4 clips.
Remove the loadspace treadplate. The clips should remain attached to the loadspace treadplate during removal.

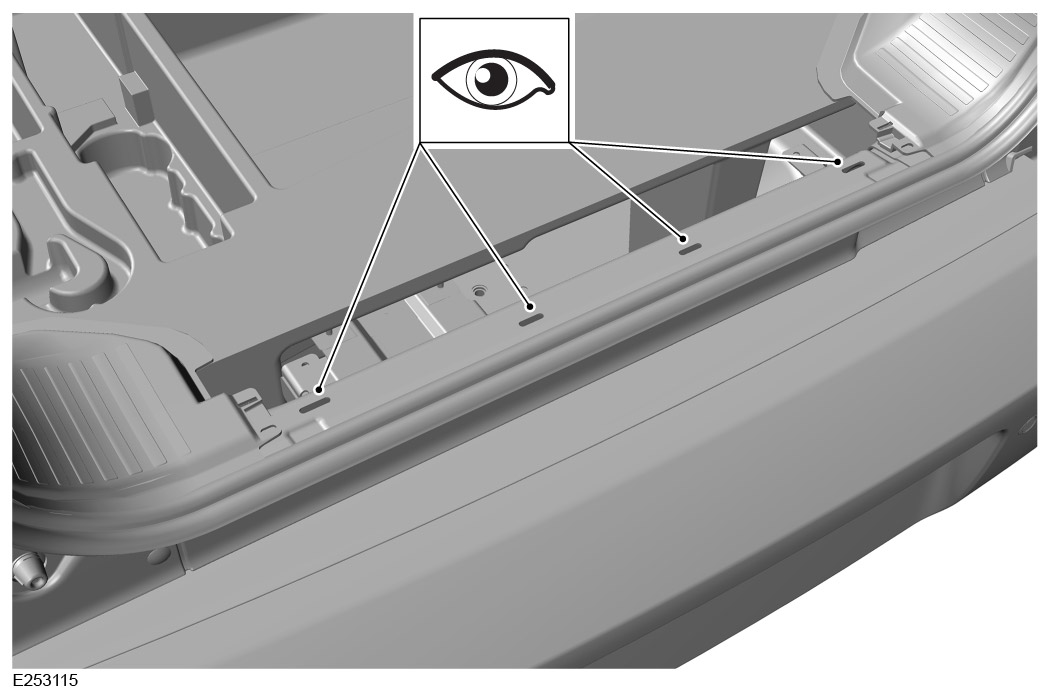

Make sure the clips at the 4 illustrated locations have all been removed from the vehicle body.

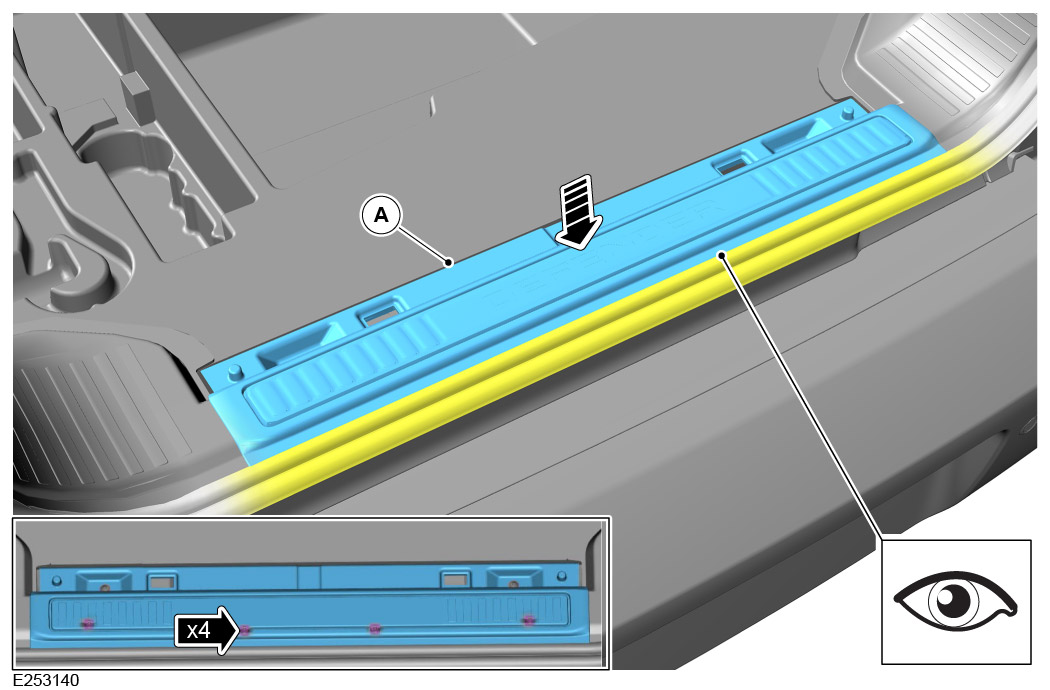

Install the loadspace treadplate (A). Make sure the illustrated section of the loadspace seal is lipped over the loadspace treadplate.

Make sure the 4 clips on the underside of the loadspace treadplate are correctly installed into the vehicle body.

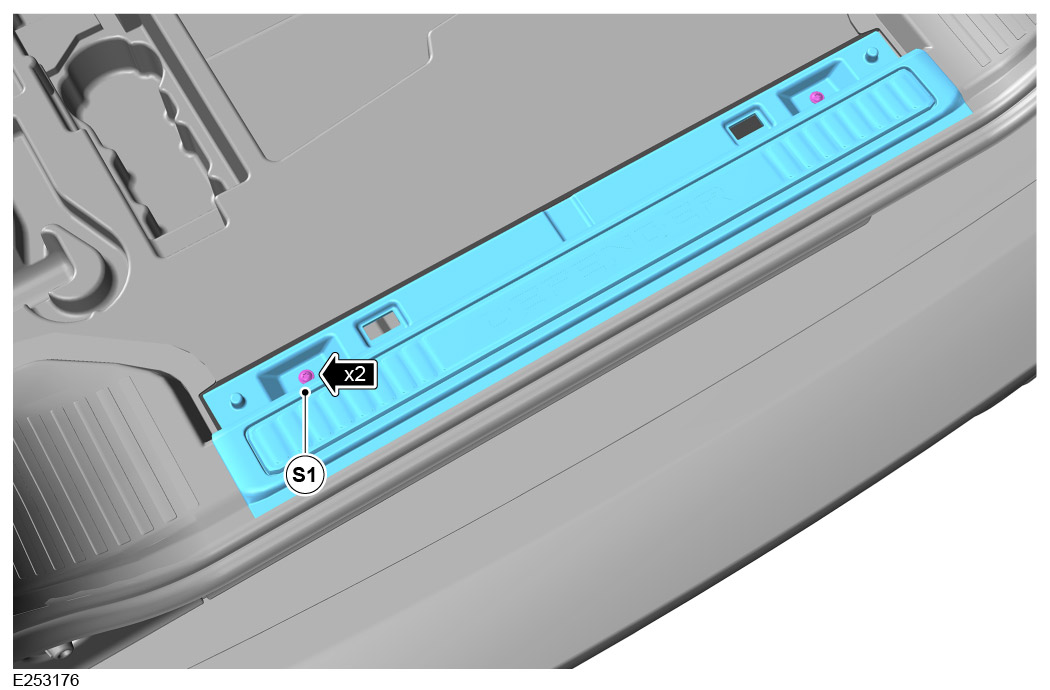

Install the 2 fixings (S1).

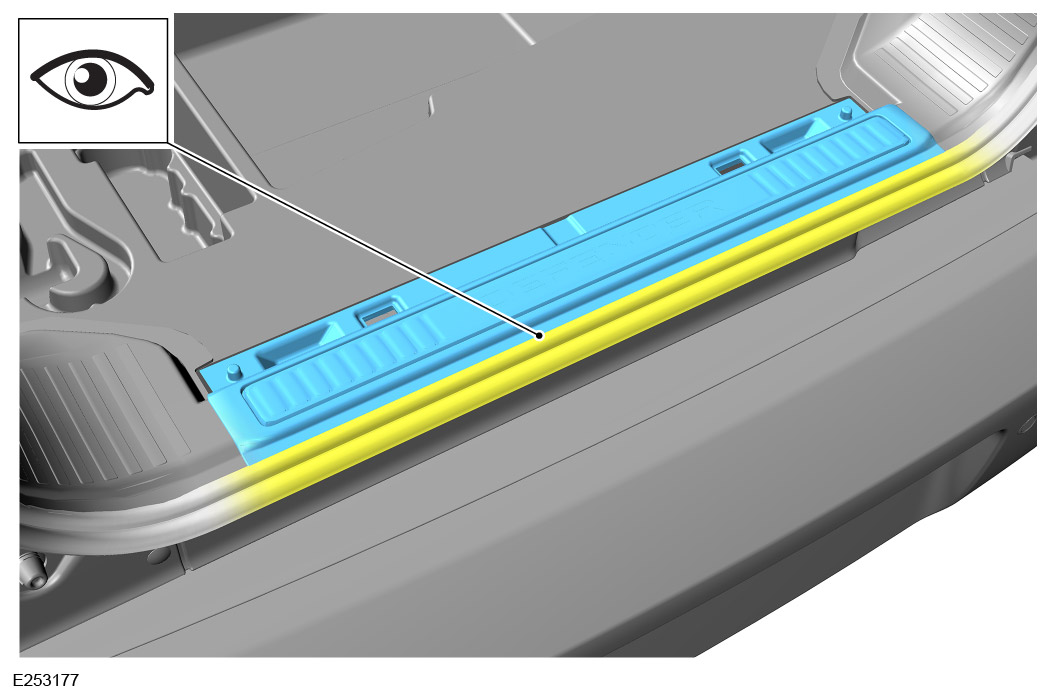

Make sure the illustrated section of the loadspace seal is lipped over the loadspace treadplate.

Install the loadspace floor trim.
