LAND ROVER ACCESSORY FITTING INSTRUCTIONS

VEHICLE :
PART NO :
KEYWORD :

LAND ROVER

DISCOVERY

TOW HITCH - NAS

VPLRT0177

FITTING INSTRUCTION

WARNING
  • Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. Whilst fitting, comply with instructions at all times. If in doubt, contact your nearest approved dealer.
Fitting Instruction
1

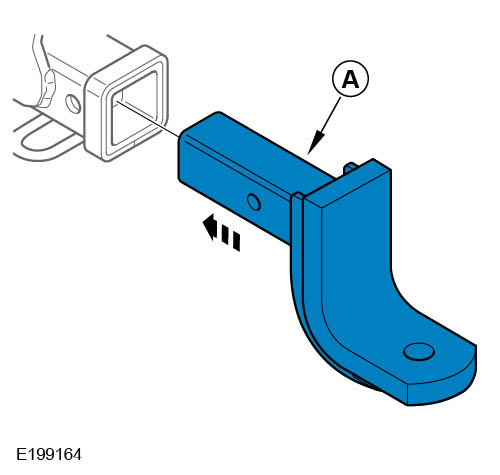

Insert the drawbar.

2

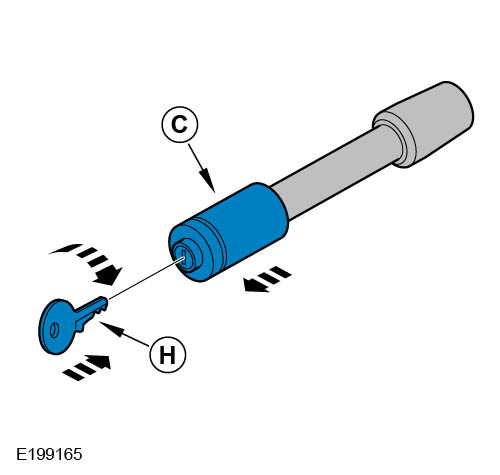

Unlock and separate the locking pin.

3

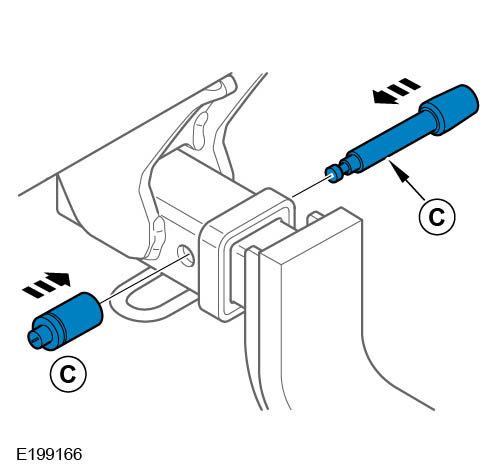

Insert the locking pin through the towbar and drawbar.

4

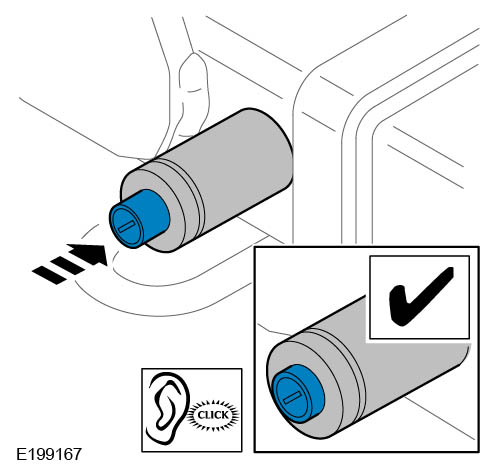

Lock the locking pin by depressing the centre section.

5

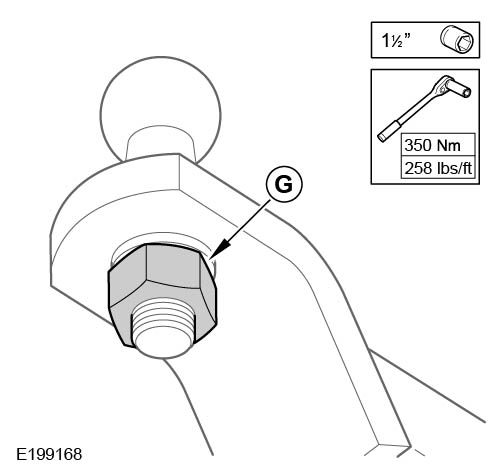

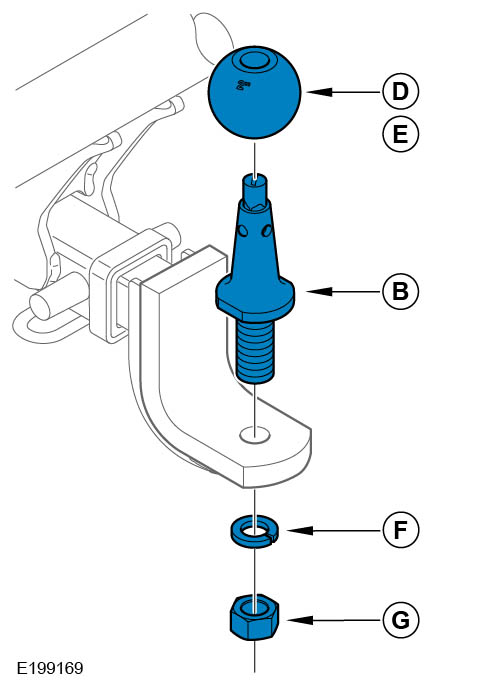

Mount the towball.

6

7

Attaching the locking towball.

  1. Depress the centre section.
  2. Turn the towball clockwise until it clicks.
  3. When the centre section is slightly raised, lock with a flat blade screwdriver.
8

Removing the locking towball.

  1. Un-lock with a flat blade screwdriver. Depress the centre section.
  2. Turn the towball anti-clockwise until it clicks.
  3. When the centre section is raised, remove the towball.
