LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

DISCOVERY

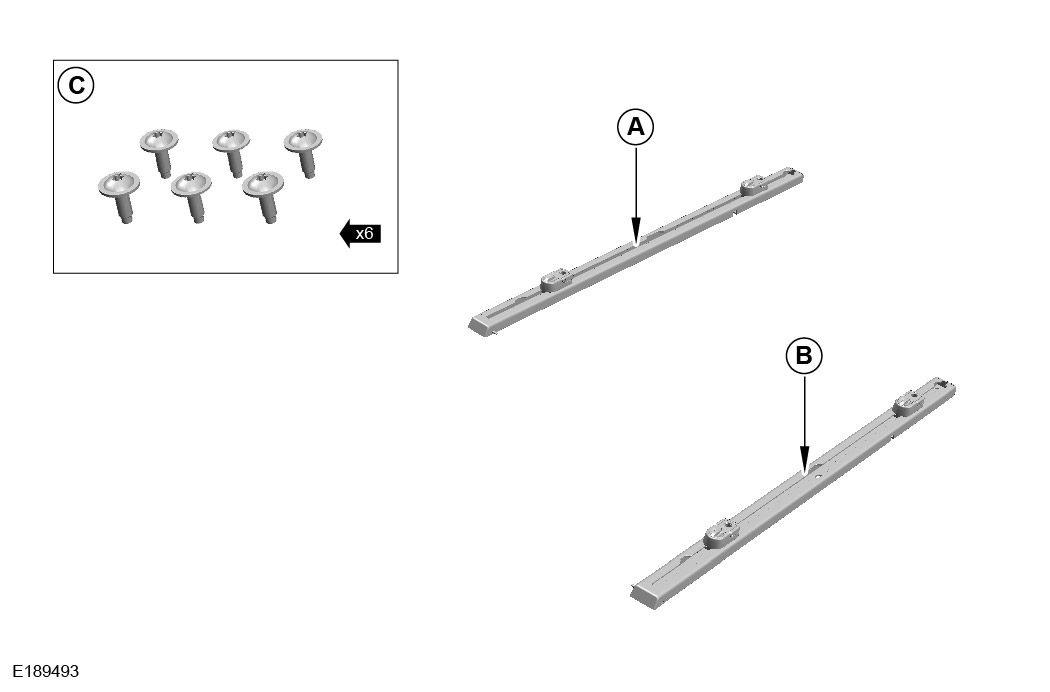

LOADSPACE RAILS

VPLRS0357

FITTING INSTRUCTION

WARNING

Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. Whilst fitting, comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTE

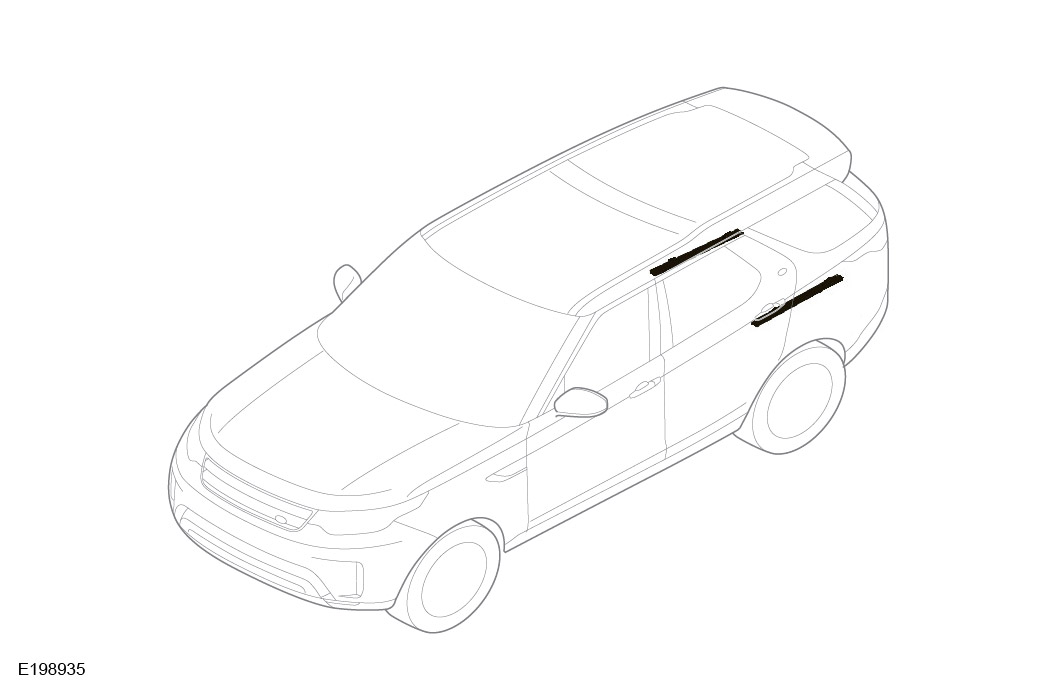

The following instructions are for both sides of the vehicle.

NOTE

The side rails are for 5 seat vehicles only.

1

Open the tailgate.

2

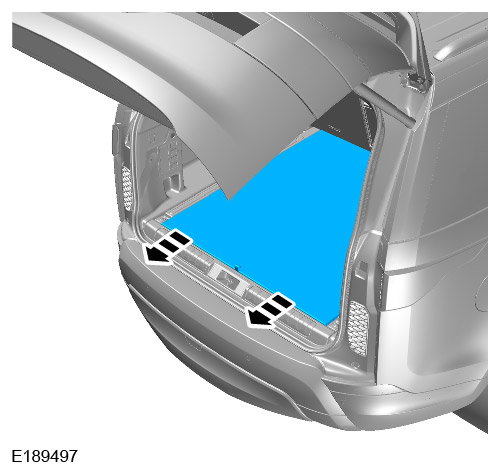

Remove the loadspace cover.

3

Remove the loadspace floor trim

4

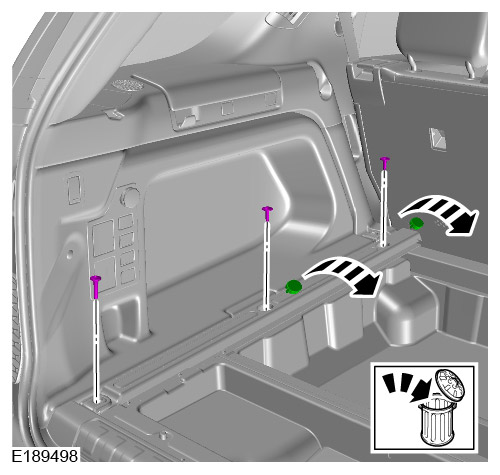

Remove and discard the fixings.

5

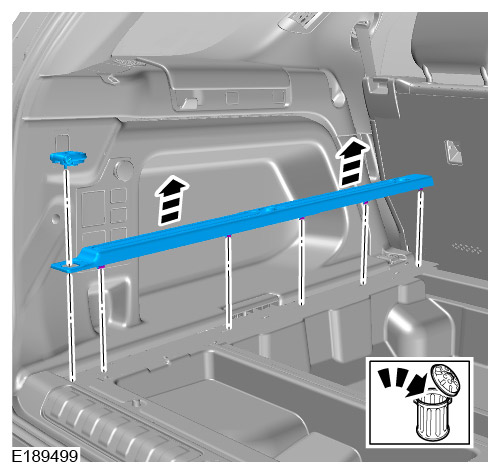

Remove and discard the trim.

6

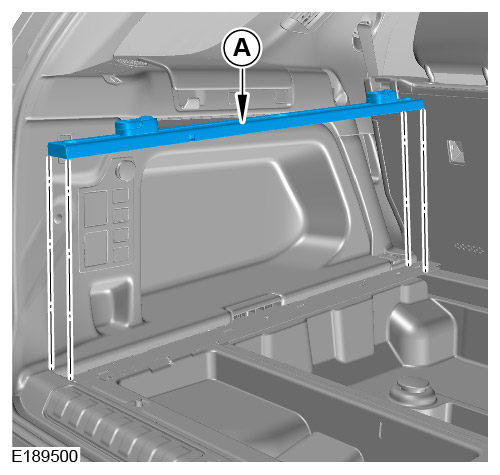

Install the Loadspace Rail.

7

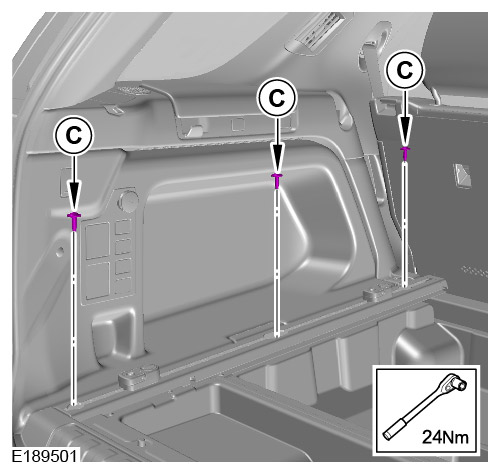

Install the Loadspace Rail bolts.

Torque: 24 Nm.

8

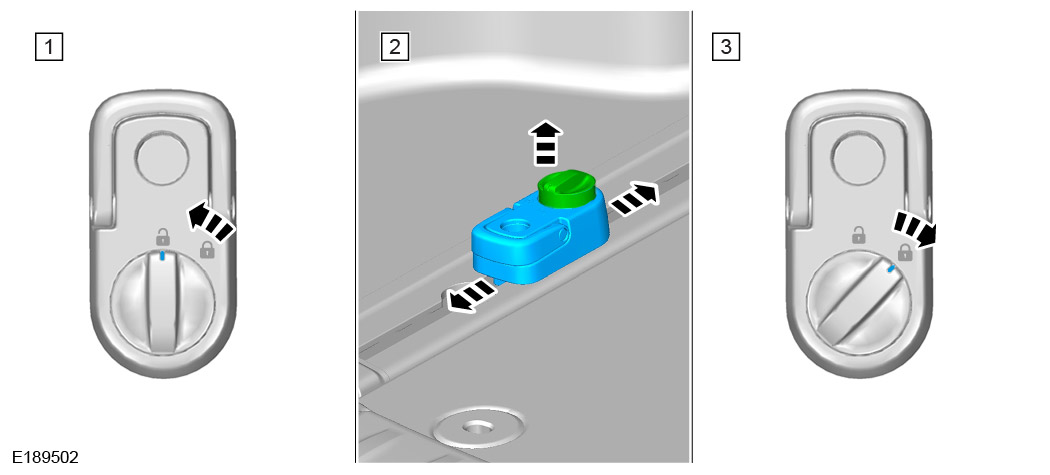

Adjust the clamps as required.

9

Repeat steps 4 to 8 for the other side.

10

Install the loadspace floor trim.

11

Install the loadspace cover.

12

Close the tailgate.
