LAND ROVER ACCESSORY FITTING INSTRUCTIONS

LAND ROVER

DISCOVERY

FOOTWELL STOWAGE NET

VPLRS0431PVJ, VPLRS0362PVJ, VPLRS0462AAM, VPLRS0461AAM

FITTING INSTRUCTION

WARNING

Accessories which are not properly fitted can be dangerous. Read the instructions carefully prior to fitting. Whilst fitting, comply with instructions at all times. If in doubt, contact your nearest approved retailer.

NOTE

Left hand drive illustration(s) shown, Right hand drive is similar.

1

Open the front passenger door.

2

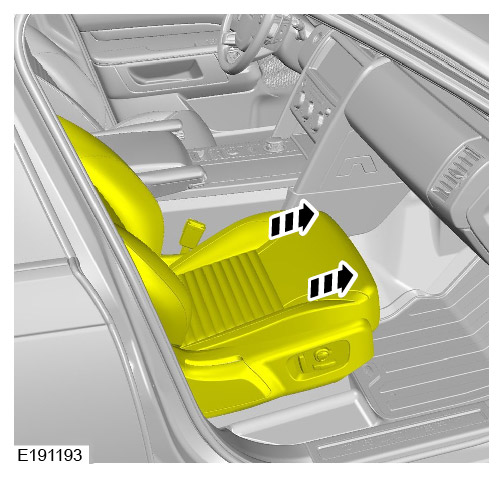

Move the front passenger seat fully rearwards.

3

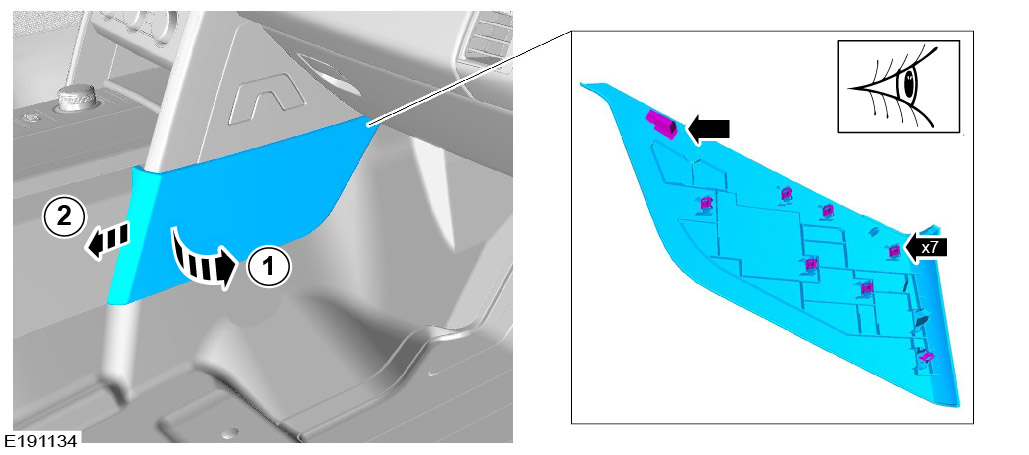

Remove and discard the floor console side finisher.

4

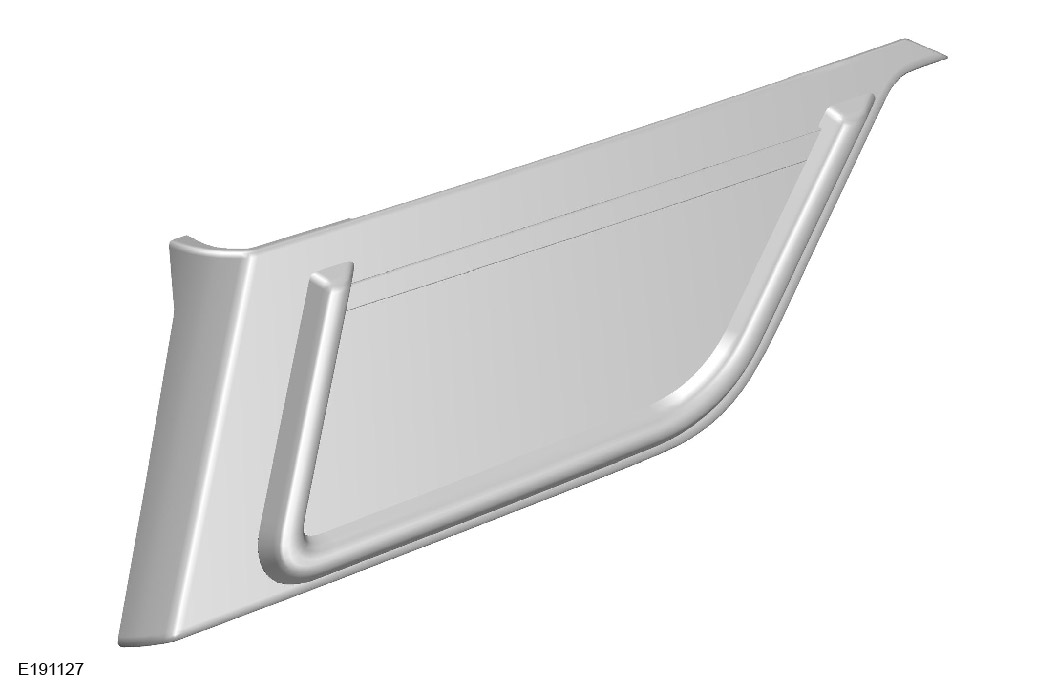

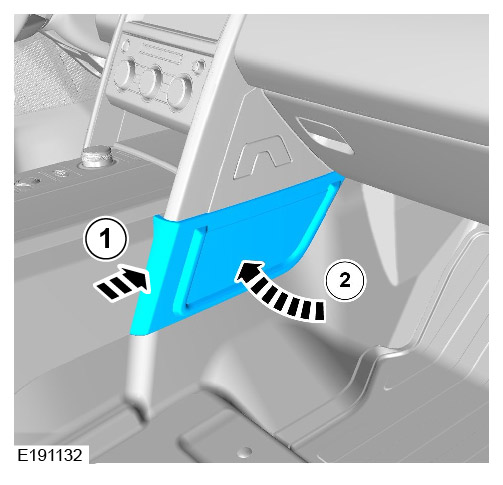

Install the footrest stowage net and finisher assembly.

5

Move the front passenger seat to its original position.

6

Close the front door.
